Wide Range Sensors

Wide Range VOC Gas Sensors

To be incorporated into fixed and portable instruments for detecting a wide range of volatile organic compounds (VOCs).

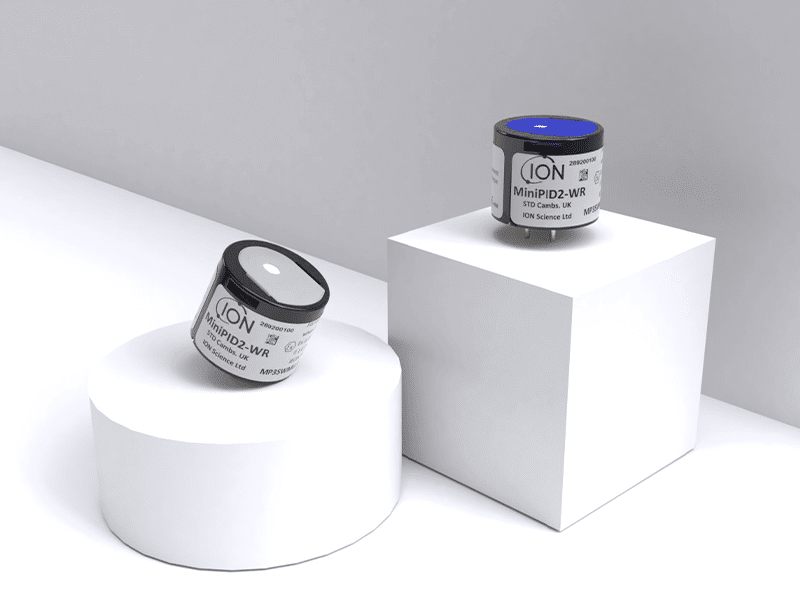

ION Science has launched two new exciting wide range sensors, the MiniPID 2 PPM WR and MiniPID 2 PPB WR.

Both can be incorporated into fixed and portable instruments for detecting a wide range of volatile organic compounds (VOCs).

wide range gas sensor

ION Science’s new MiniPID 2 PPM WR sensor offers a measurement range up to 10,000 ppm and is aimed at detecting the Lower Explosive Limit (LEL) of VOCs, as well as Leak Detection and Repair (LDAR) applications.

wide range gas sensor

The MiniPID 2 PPB WR sensor boasts a measurement range of 20 ppb to 200 ppm making it suitable for Industrial Health & Safety and Fugitive Emissions.

Like all ION Science’s MiniPID 2 sensors, the new WR models offer patented humidity resistance and an anti-contamination design aimed at fast detection of VOCs within even the most challenging environments.

Pete Morris, ION Science’s Business Unit Manager for Sensors comments:

“During the past few years, we have focused on expanding our range of sensors for the accurate and reliable detection of VOCs. The two new MiniPID 2 WR models will plug the remaining gap in our portfolio, open up new global markets and allow us to target previously untapped business.

He adds: “Many VOCs have an LEL above 4000 ppm and LDAR method Environmental Protection Agency (EPA) 21, which is defined as ‘determination of volatile organic compound leaks’, dictates you have to measure up to 10,000 ppm. Before launching the MiniPID 2 PPM WR sensor we couldn’t fully access these markets.

“In addition, prior to introducing the MiniPID 2 PPB WR we did not have a sensor optimised for detecting VOCs in industrial environments that have threshold levels between 40 and 200 ppm. It will also help our customers adhere to legislation in the USA which requires fugitive emission measurements of VOCs, including benzene, up to 200 ppm.”

Wide Range VOC Gas Sensors

MiniPID 2 PPB WR Gas Sensor

Range: >200 ppm. Minimum detection limit: 20 ppb. The MiniPID 2 PPB Wide Range gas sensor is optimised to deliver an exceptionally low background which allows for optimum low-end sensitivity.

Product Details
MiniPID 2 PPM WR Gas Sensor

Range: >10,000 ppm. Minimum detection limit: 500 ppb. 10.6 eV lamp. The MiniPID PPM WR gas sensor is designed for detecting VOCs over the widest dynamic range on the market without compromising performance.

Product Details
