Micropump Evaluation Kit

Easily and rapidly test Disc Pump

The Micropump Evaluation Kit includes two micopumps and all the supporting electronics/PC software to run the pump at your application requirements.

Enquire Now Download Datasheet

Back to all Disc Pumps

Features

Disc Pump is a multi award-winning micropump platform, which is enabling innovation across sectors from medical and life sciences, to environmental and defence through wearability, portability, and simplicity. We offer three product lines: the entry-level BL Series, which strikes a balance between performance and cost; the XP Series with our highest performance and widest temperature range to suit the most demanding applications; and the LT Series, engineered for applications demanding long operational life in excess of 5,000 hours.

All of our pump designs have two pumping chambers. These are configured at the point of manufacture to be in series for higher pressure applications, or parallel for higher flow.

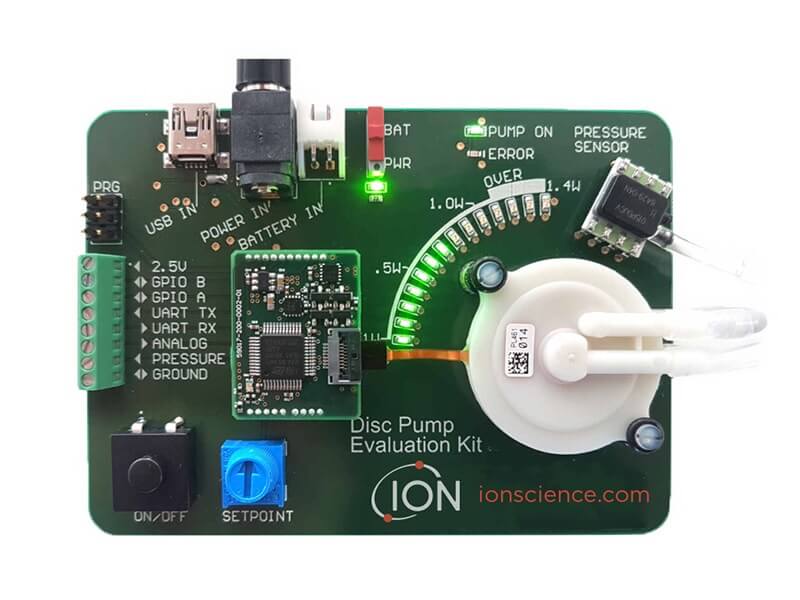

The kit includes 2 Disc Pumps, driver board, mains USB, accessory kit, USB drive with PC app for control, configuration and documentation.

Control Interfaces

Rotary dial (can be configured to control pressure or power)
0 – 2.5 V analog in (can be configured to control pressure and power)
USB-Serial interface for control via PC
2.5 V UART interface for integration with host embedded systems

Control Modes

Power control
Closed-loop pressure control (positive and negative pressure)
Bang-bang pressure control

Evaluation Kit – BL Series Disc Pumps

BL Series (BL-S2-012)

Pressure Range	0 – 300 mBar
Flow Range	0 – 0.5 L/min
Vacuum Range	0 – 200 mBar

BL Series (BL-S2-012)

Pressure Range	0 – 300 mBar
Flow Range	0 – 0.5 L/min
Vacuum Range	0 – 200 mBar

BL Series (BL-P2-013)

Pressure Range	0 – 170 mBar
Flow Range	0 – 0.95 L/min
Vacuum Range	0 – 170 mBar

BL Series (BL-S2-030)

Pressure Range	0 – 270 mBar
Flow Range	0 – 0.85 L/min
Vacuum Range	0 – 180 mBar

BL Series (BL-P2-031)

Pressure Range	0 – 160 mBar
Flow Range	0 – 1.65 L/min
Vacuum Range	0 – 160 mBar

Evaluation Kit – XP Series Disc Pumps

XP Series (DP-S2-007) Intermittent

Pressure Range	0 – 400 mBar
Flow Range	0 – 0.75 L/min
Vacuum Range	0 – 300 mBar

XP Series (DP-S2-007) Continuous

Pressure Range	0 – 310 mBar
Flow Range	0 – 0.65 L/min
Vacuum Range	0 – 250 mBar

XP Series (XP-S2-028) Intermittent

Pressure Range	0 – 400 mBar
Flow Range	0 – 1.00 L/min
Vacuum Range	0 – 310 mBar

XP Series (XP-S2-028) Continuous

Pressure Range	0 – 310 mBar
Flow Range	0 – 0.85 L/min
Vacuum Range	0 – 250 mBar

XP Series (DP-P2-008) Intermittent

Pressure Range	0 – 250 mBar
Flow Range	1.35 L/min
Vacuum Range	0 – 200 mBar

XP Series (DP-S2-008) Continuous

Pressure Range	0 – 190 mBar
Flow Range	0 – 1.10 L/min
Vacuum Range	0 – 140 mBar

XP Series (XP-P2-029) Intermittent

Pressure Range	0 – 210 mBar
Flow Range	0 – 2.10 L/min
Vacuum Range	0 – 180 mBar

XP Series (XP-P2-029) Continuous

Pressure Range	0 – 150 mBar
Flow Range	0 – 1.80 L/min
Vacuum Range	0 – 120 mBar

Evaluation Kit – LT Series Disc Pumps

LT Series (LT-S2-023)

Pressure Range	0 – 270 mBar
Flow Range	0 – 0.55 L/min
Vacuum Range	0 – 220 mBar

LT Series (LT-P2-024)

Pressure Range	0 – 150 mBar
Flow Range	0 – 1.20 L/min
Vacuum Range	0 – 150 mBar
