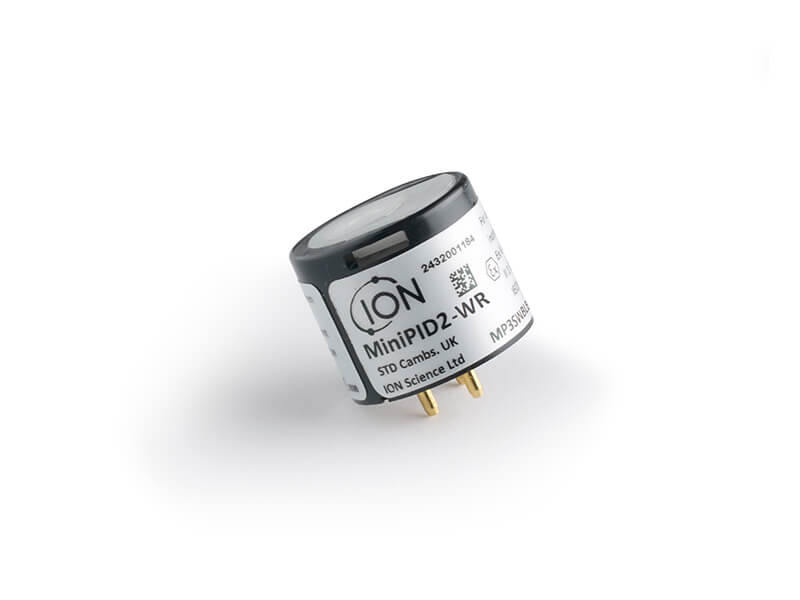

MiniPID 2 PPB Wide Range Sensor
OEM gas sensor with state of the art sensing technology
The MiniPID 2 PPB Wide Range sensor is optimised to deliver an exceptionally low background which allows for optimum low-end sensitivity whilst maintaining a wide dynamic range.
This PID sensor is virtually insensitive to humidity changes, providing unparalleled performance in a variety of applications.
The MiniPID 2 PPB Wide Range sensor is a simple plug-and-play sensor able to deliver a dynamic and dependable response to thousands of volatile organic compounds (VOCs) across many diverse applications.
The VOC sensor is designed for both diffusive and in-line pumped sampling, delivering an exceptional response time and clear down. The MiniPID 2 PPB Wide Range sensor incorporates lamps of exceptional brightness and stability enabling detection of less volatile and less readily sensed compounds reliably, over an extended period of time.
Note: Alumina polishing of MiniPID 2 lamps is appropriate for all MiniPID 2 lamps except the MiniPID 2 11.7 eV lamp. Instead, please use anhydrous ethanol or methanol (please refer to the MiniPID 2 manual for guidance or contact email@example.com for further support).
- Humidity resistance
- Anti contamination design
- Removable, pneumatically sealed sensing electrode stack
- Series 4 / A1 size
- 12 – month warranty (excluding the electrode stack)
- Expected life > 5 years
|Electrode Stack Colour||White|
|Minimum Detection Limit||20 ppb|
|T90 Response Time (Seconds)||<8|
Power and Signal
|Supply Voltage (using internal regulator)||3.6 – 18 V (non intrinsically safe 10 – 18 V)|
|Supply Voltage (using a regulated power supply)||3 – 3.6 V|
|Current||20 – 32 mA (130 mA for 100 ms at start up)|
|Power Consumption||100 mW at 3.3 V|
|Output Signal (using internal regulator)||0 – 3.2 V|
|Output Signal (using a regulated power supply)||0 to rail voltage – 0.1 V|
|Temperature Range||-40 to 65 °C|
|Relative Humidity Range||0 – 99% RH, non-condensing|
Lifetime and Warranty
|Expected Life||>5 years|
|Lamp Life||10.6 eV 10,000 Hours|
|Warranty||10.6 eV lamp and MiniPID Body –12 months|
|North America Certification||UL|
|Patents||US 7,046,012 EC 1474681|
|Eurasian Customs Union||No EA∋C RU C-GB.HA65.B.00635/20|
Accessories and Replacement Parts
