Hydrogen Sulfide (H2S) Single Gas Detector
Keeping Workers Safe and you Compliant
Industrial sites in the Oil & Gas, Petrochemical and Offshore sectors can be volatile places if the right safety measures are not in place. You need reliable and ATEX certified gas detectors to keep the workforce safe.
Hydrogen Sulfide (H2S) may desensitise and render the body unconscious in no time at high concentrations, therefore, reliable personal monitoring equipment is crucial.

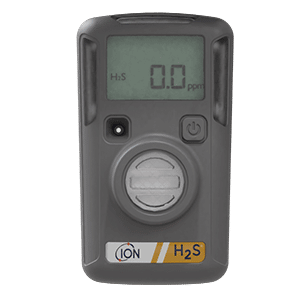

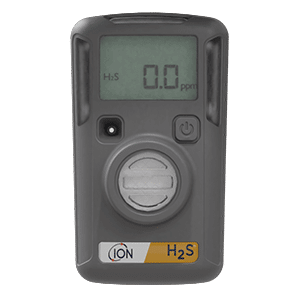

ARA H2S portable alarm is a low cost, wearable clip monitor for the detection of dangerous levels of Hydrogen Sulfide (H2S). The detector alerts workers when gas concentrations exceed set safety levels.
The ARA H2S clip monitor operates for 24 months maintenance-free, with continuous operation. The 36-month model, provides you with even more life for a competitive low-cost price, simply slip the detector into hibernation mode when you’re not using it to extend its service life, ideal for contractors or consultants who only visit site on occasion.
The H2S sensor is designed to withstand the harshest industrial working conditions, typical applications include:
- Site wide safety
- Plant turnaround processes
Hydrogen Sulfide (H2S) Gas Detector
Features
Designed with practical applications in mind, the ARA Hydrogen Sulfide (H2S) unit weighs just 92g and is equipped with a sturdy clip for attaching to workwear positioned close to the breathing zone. At only 87mm in length, it does not impede worker movement and is suitable for use in confined space working, such as maintenance to pipes or tankers. As an intrinsically safe model, users can be assured it’s safe in all environments, with a three-signal system of a flashing light, audible alarm, and vibration to alert the wearer of exposure levels reaching dangerous concentrations.
The ARA Hydrogen Sulfide gas detector has a daily self-test feature that tests the audio, visual and vibration alarms to give you confidence that workers are protected.
The ARA IR link* allows you to download 30 recent event logs and configure setting including:
- User ID
- Low / High alarms
- Self test intervals
- Bump test intervals
Ultimate Performance
- 24 months of continuous operation
- Live H2S readings
- Event logging download
- Water and dust resistant
- Robust to withstand extreme operational environments
Ultimate Safety
- Instantaneous alarms
- Adjustable high/low alarms
- Calibration and bump test reminders
Ultimate Flexibility
- Lifetime remaining countdown helps users to plan for future projects and site shutdowns
- Displayed data option (live reading or lifetime remaining)
- Hibernation feature to extend the life of the device up to 36 months.
Hydrogen Sulfide Gas Detector – Technical Specification
Specification | Value |
|---|---|
| Sensor Type | Single plug-in electrochemical cell |
| Detection Range | H2S: 0 to 100 ppm CO: 0 to 300 ppm SO2: 0 to 50 ppm O2: 0 to 25 % |
| Event Log Storage | Last 30 events |
| Battery | 3.6 Vdc, 1.65 Ah, lithium battery |
| Battery Life | Standard models: 24 months of operations (2 mins alarms per day) Hibernation models: 36 months of operation (2 mins per day and using sleep function) |
| User Options | User ID Low Alarm High Alarm Displayed Data (live reading or lifetime remaining) Bump-Test Interval Calibration Interval Self-test Interval |
| Alarms | Audio Alarm: (95 dB @ 10 cm) Visual Alarm: LED Vibrating Alarm: Vibrator (operates at ± 10 °C) |
| Temperature | H2S, CO, SO2: – 40 to 60 °C O2: – 30 to 60 °C Humidity: 5 – 95 % RH |
| Ingress Protection | IP67 |
| Display | Liquid Crystal Display (LCD) |
| Weight and Dimensions | 92 g (3.2 oz) 87 x 50 x 29 mm (3.4 x 2.0 . 1.1 inch) |
* All specifications quoted are at calibration point and under the same ambient conditions.
Specifications are based on isobutylene calibration at 20 ËšC, 90% RH and 1000 mBar
*Model dependant.
ION ARA DOCK4
The ARA DOCK4 is a bump test and calibration station that can test up to 4 ARA Single Gas Detectors simultaneously reducing gas usage and testing time. The ARA DOCK4 is simple to operate and records calibration and bump test reading along with the serial number, date and time.
To find out more about the ARA DOCK4 available from ION Science, including the H2S Single Gas Detector, please fill out the form HERE.
*ARA DOCK4 is sold separately
Video Library
ARA DOCK4
Find out more about the ARA DOCK4 Bump Test and Calibration Station.
What’s in the box?
Find out more about ARA gas detector, its functionality and models for H2S, CO, SO2 and O2 gas detection.
Find out more about ARA Single Gas Detector Range!
Find out more about ARA gas detector, its functionality and models for H2S, CO, SO2 and O2 gas detection.
Downloads
For further supporting documentation for ARA H2S single gas detector, please see below.
H2S Single Gas Detector – Accessories and Replacement Parts
For further supporting documentation for ARA H2S single gas detector please see below.
