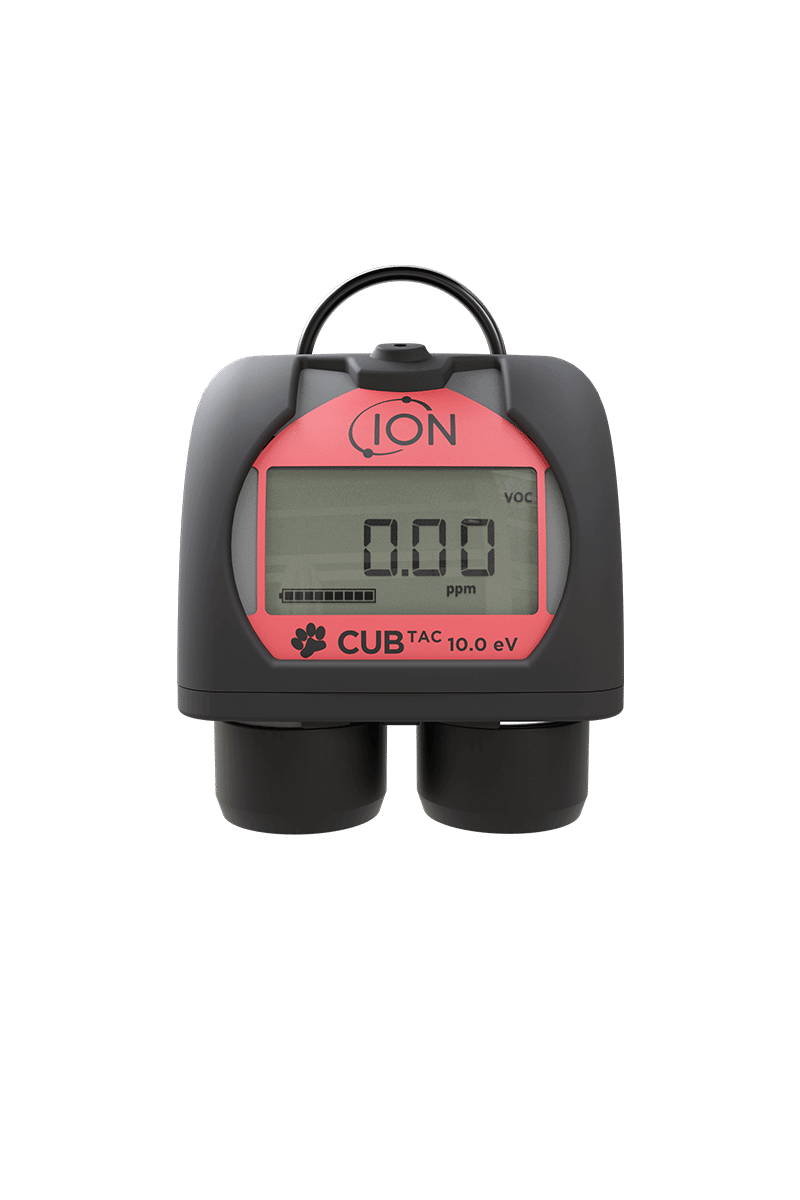

Cub TAC 10.0 eV

Personal Total Aromatic Compound Gas Monitor

Cub TAC 10.0 eV personal total aromatic compound gas monitor for fast, accurate detection of total aromatic compounds (TACs) keeping you safe within your working environment.

When worker exposure exceeds pre-set limits, the personal total aromatic compound gas monitor has audible, vibrating and flashing LED alarms that alert you to the gases present. Readings are displayed on its bright, back-lit LCD display with selectable data logging time.

Cub TAC 10.0 eV personal total aromatic compound gas monitor uses ION Science patented PID sensor technology that has been independently verified as best performing for speed, accuracy, and humidity resistant operation. Its unique Anti-contamination design and patented Fence Electrode Technology provide extended run time in the most challenging environments, giving you accurate benzene monitoring results you can truly rely on.

IECEx certification ATEX certfication sgs_certification lvd_certification

Enquire NowDownload Brochure

Features

Cub TAC 10.0 eV personal total aromatic compound gas monitor has a dynamic benzene detection range of 0 to 5000 parts per million (ppm), with its market leading ppb sensitivity, Cub TAC 10.0 eV comes with all the benefits of the Cub personal VOC gas detector but has a 10.0 eV lamp utilising a unique light filtering technology to give a reliable aromatic hydrocarbon concentration.

Also available from ION Science, the Cub 10.6 eV personal gas detector.

Ultimate Performance

  • Unrivalled sensitivity detects benzene down to ppb levels
  • Widest range detects gases 0 – 5,000 ppm
  • Anti-contamination design for extended field operation
  • In-built humidity resistance with no need to compensate

Ultimate Safety

  • Fastest (<13 second) response to hazardous gases & vapours
  • Clear audio, visual and vibrating alarms
  • Large LCD display for clear readings
  • Battery life up to 12 hours
  • Meets ATEX, IECEx Certification

Ultimate Flexibility

  • Easy to service
  • Smallest, lightest personal PID monitor available

Technical Specification

IECEx certification ATEX certfication sgs_certification lvd_certification

Specification
Value
Sensitivity

0.001 ppm (isobutylene equivalent)*

0.002 mg/m3 (isobutylene equivalent)*

Accuracy

± 5% display reading ± one digit
Response

<13 seconds (T90)

Approvals

ll 1 G Ex ia llC T4 Ga (-20 °C ≤ Ta ≤ 55 °C)

Baseefa11ATEX0027 IECEx BAS 11.0014

Battery

Battery life up to 12 hours

Battery charge time 4 hours
PID lamp options 10.6 eV, 10.0 eV
Data Logging 30,000 readings
Communication USB 2.0
Alarm

LEDs, audio and vibrate Sounder 95 dB @ 300 mm.

Pre-programmed TWA & STEL Work exposure alarm levels on all models.
Temperature Operating: – 20 to 60 °C (- 4 to 140 °F)
Certified: – 20 to 55 °C (-4 to 131 °F)
Weight and Dimensions 111 g (2.91 oz)
61 x 66 x 59 mm (2.4 x 2.6 x 2.3″)
Resolution ppm 0.1 ppm
ppb 0.001 ppm
TAC 0.01 ppm
Range 0 – 5000 ppm
Calibration 2 point calibration via docking station
Upgradeable Upgrade ppm to ppb
IP Rating IP65** (heavy rain)
LCD Display Backlit multi colour
Flow Rate N/A (no pump)

All specifications quoted are at calibration point and under the same ambient conditions. Specifications are based on isobutylene calibration at 20 °C and 1000 mBar.
* Model dependant.
** IP65 with PTFE filter fitted, IP64 without PTFE filter fitted.
