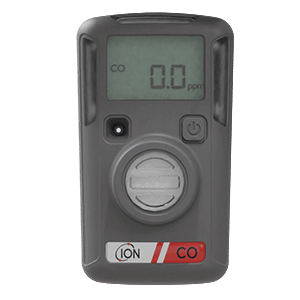

C0 Gas Detector

Personal Carbon Monoxide (CO) Detector

ARA CO

The Carbon Monoxide (CO) single gas detector is a cost effective personal detector with 24 months of continuous operation. This wearable & personal CO gas detector has only one button to make use simple and alerts workers when Carbon Monoxide exceeds set safety levels.

Typical applications for personal carbon monoxide detectors includes:

  • Site wide safety
  • Confined space entry
  • Plant shutdown processes
  • First response safety

qps_ certificationIECEx certificationATEX certfication

Inquire Now

Personal Carbon Monoxide Detector –

Features

Personal CO detectors have self test feature that tests the audio, visual and vibrate carbon monoxide alarms to give you confidence before use!

The ARA IR link* allows you to download 30 recent CO event logs and configure settings including:

  • User ID
  • Low / High carbon monoxide alarms
  • Self test intervals
  • Bump test intervals

Ultimate Performance

  • 24 months of continuous operation
  • Live & personal carbon monoxide readings
  • Event logging download

Ultimate Safety

  • Instantaneous alarms
  • Adjustable high/low CO alarms
  • Calibration and bump test reminders

Ultimate Flexibility

  • Lifetime remaining countdown helps users to plan for future CO based projects and site shutdowns
  • Displayed carbon monoxide data option (live reading or lifetime remaining)

Technical Specification

qps_ certificationIECEx certificationATEX certfication

Specification
Value
Sensor Type Single plug-in electrochemical cell
Detection Range H2S: 0 to 100 ppm
CO: 0 to 300 ppm
SO2: 0 to 50 ppm
O2: 0 to 25 %
Event Log Storage Last 30 events
Battery 3.6 Vdc, 1.65 Ah, lithium battery
Battery Life Standard models: 24 months of operations (2 mins alarms per day)
Hibernation models: 36 months of operation (2 mins per day and using sleep function)
User Options User ID
Low Alarm
High Alarm
Displayed Data (live reading or lifetime remaining)
Bump-Test Interval
Calibration Interval
Self-test Interval
Alarms Audio Alarm: (95 dB @ 10 cm)
Visual Alarm: LED
Vibrating Alarm: Vibrator (operates at ± 10 °C)
Temperature H2S, CO, SO2: – 40 to 60 °C
O2: – 30 to 60 °C
Humidity: 5 – 95 % RH
Ingress Protection IP67
Display Liquid Crystal Display (LCD)
Weight and Dimensions 92 g (3.2 oz)
87 x 50 x 29 mm (3.4 x 2.0 . 1.1 inch)

* All specifications quoted are at calibration point and under the same ambient conditions.
Specifications are based on isobutylene calibration at 20 ˚C, 90% RH and 1000 mBar
*Model dependant.
