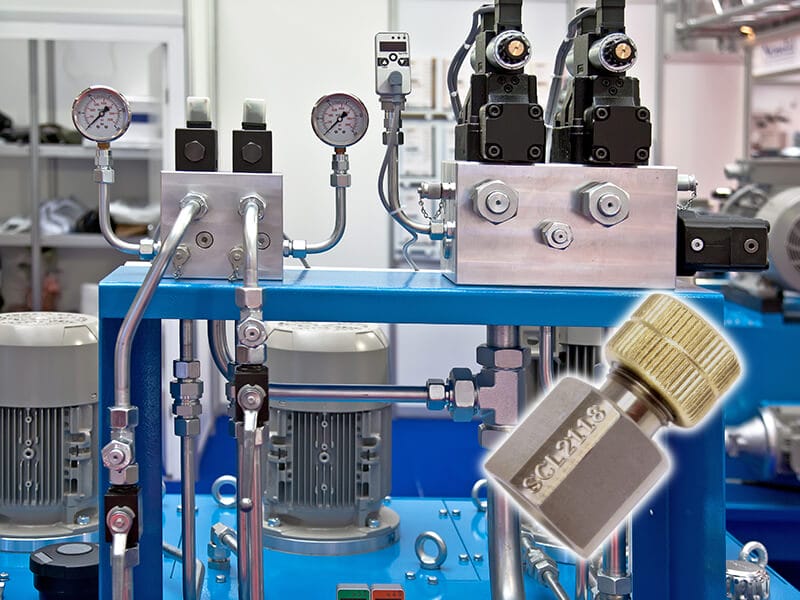

Calibrated Leaks Thumbnail Image

Calibrated Leaks

Calibrated Leaks Made to your Requirements

ION Sciences calibrated leaks are small fittings that deliver a specific gas leak rate, often used to set pass/fail thresholds on leak detection systems or leak detection instruments. Each calibrated leak is made to order to your specified leak rate, gas and pressure which must be specified at placement of your order.

Inquire NowDownload Brochure

Features

Each calibrated leak is supplied in its own storage box with a certificate of calibration in accordance with our ISO9001:2008 procedures, giving you confidence in the accuracy of the calibrated leak upon which you depend. By ensuring our own quality standards we can help you to meet yours.

For exceptional stability over time and resistance to corrosion and contamination, all calibrated leaks are made from stainless steel. The body has a standard 1/8 BSP inlet and outlet thread and can be supplied with a quick fit staubli fitting, for use with leak testers. The simple screw in screw out functionality of the calibrated leak is ideal when returning your calibrated leak to ION Science for annual calibration as the leak can be easily removed, placed in its storage box and sent in the post.

Traceable

  • Factory calibrated leak procedures in accordance with our ISO 9001:2008 quality management system
  • Supplied in a storage box with the calibrated leaks calibration certificate

Flexible

  • Leaks from 1 x 10-4 ml/s to 10 l/min
  • Wide range of gases and inlet pressures available

Reliable

  • Calibrated leaks are made from stainless steel
  • Corrosion and contamination resistant

Calibrated Leaks Technical Specification

Quality calibrated leaks produced to your precise pressure and flow requirements with exceptional long term stability. Ion Science calibrated leaks are produced in order for a known leak to be presented to a test system. Should the leak be detected by your gas / leak detector at the correct value then the system is within calibration, giving you confidence in the accuracy of the instruments upon which you depend.

Construction

  • Stainless steel body with bronze sinter
  • 1/8 BSP inlet and outlet threads Accuracy
  • Leak rate +/- 10%

Leak rate specifications

  • Maximum 10L/min Minimum 1 x 10-4ml/sec Information required when ordering
  • Leak rate eg. ml/sec, ml/hr etc.
  • Inlet pressure 50 mbar to 5 Bar
  • Gas to be used with leak e.g. air, helium etc.

Downloads

For further supporting documentation please see below.

Brochures

Company Documents

Videos

Calibrated Leaks Accessories

Calibrated leaks are also the key component used within the ION Science CalCheck, a self contained calibration device used specifically to calibrate leak detection instruments.
