cub_11.7_personal_voc_gas_monitor

Cub 11.7 eV

Personal VOC Gas Monitor

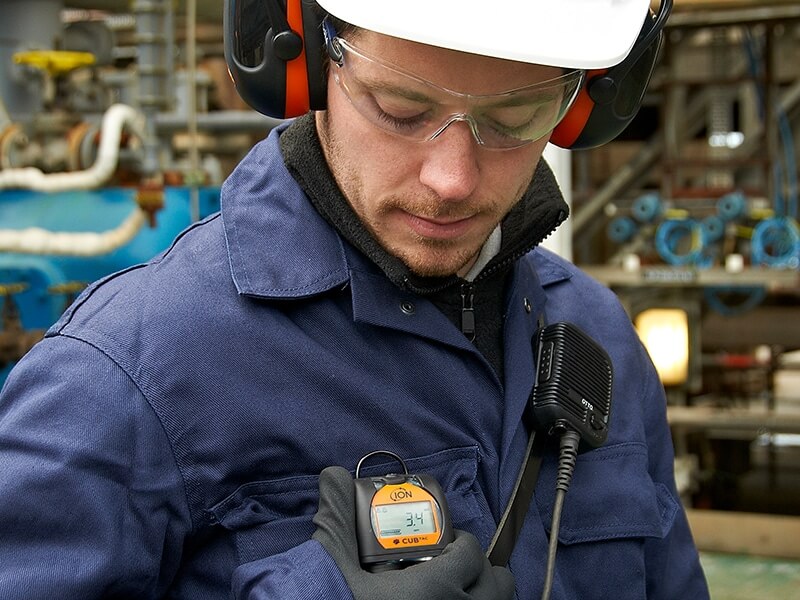

The Cub 11.7 eV personal VOC gas monitor is worn within the breathing zone to detect volatile organic compounds, keeping you safe within your working environment.

Our personal VOC gas monitor is the worlds smallest and lightest wearable VOC gas detector. When worker exposure exceeds pre-set limits, the gas monitor audible, vibrating, and flashing LED alarms alert you to the VOC gases present. Readings are displayed on its bright, back-lit LCD display with selectable data logging time.

sgs_certification lvd_certification IECEx certification ATEX certfication

Inquire NowDownload Brochure

Features

Cub’s patented photoionisation detection (PID) sensor technology has been independently verified as best performing for speed, accuracy, and humidity resistant operation.

Our personal VOC gas monitor is the world’s smallest, lightest personal PID monitor for the accurate detection of volatile organic compounds and other gases that require a higher energy output such as acetylene, methanol and formaldehyde.

Also available from ION Science, the Cub 10.6 eV personal VOC gas detector & the Cub TAC benzene detector.

Ultimate Performance

  • Unrivalled sensitivity detects VOCs down to ppb levels
  • Widest range detecting gases 0.5 to 5,000 ppm
  • In-built humidity resistance with no need to compensate
  • Anti-contamination design for extended field operation

Ultimate Safety

  • Fast (<11 second) response to hazardous gases & vapours
  • Clear audio, visual and vibrating alarms
  • Large LCD display for clear readings
  • Battery life up to 12 hours
  • Meets ATEX, IECEx certification

Minimal Downtime

  • Fast start up with no complicated set up
  • Battery life up to 12 hours continual use
  • Simple icon driven menu requires minimal user training
  • Direct USB connectivity for fast data download

Technical Specification

sgs_certification lvd_certification IECEx certification ATEX certfication

Specification
Value
Sensitivity 0.5 ppm (500 ppb) ****
Accuracy

± 12% of display reading****
Response <13 seconds (T90)
Approvals

ll 1 G Ex ia llC T4 Ga (-20 °C ≤ Ta ≤ 55 °C)

Baseefa11ATEX0027

IECEx BAS 11.0014

US and Canadian approvals: Class I, II and III, Division I, Hazardous (Classified) Locations
Battery Battery life up to 12 hours
Battery charge time 4 hours
PID lamp options 11.7 eV
Data Logging 30,000 readings
Communications USB 2.0
Alarms

LEDs, audio and vibrate Sounder 95 dB @ 300 mm

Pre-programmed TWA & STEL Work exposure alarm levels on all models
Temperature

0°C to 55°C
Weight and Dimensions 111g (2.91 oz)
61 x 66 x 59 mm (2.4 x 2.6 x 2.3″)
Resolution 11.7 eV: 0.1 ppm
Range** 0 – 5000 ppm ****#
Calibration 2 point calibration via docking station
Upgradeable N/A
IP Rating IP65** (heavy rain)
LCD Display Backlit multi colour
Flow Rate N/A (no pump)
** IP65 with PTFE filter fitted, IP64 without PTFE filter fitted.
**** Specifications are based on isobutylene calibrations at 20 °C and 1000 mBar.
#For indicative measurements only. Quoted accuracy achievable up to 2,000 ppm. For more accurate detection, calibration around concentration of interest is recommended.
Download Brochure

Video Library

What does PPM look like?

The term Part Per Million (PPM) is fairly self-explanatory, it’s simply the dilution of one matter into another but what does it actually look like?

Downloads

For further supporting documentation for Cub 11.7 eV personal VOC gas monitor, please see below.

Brochures

Company Documents

Instrument Gas Table

Manuals

Quick Start Guides

Software

Technical Application Articles

Videos

Cub 11.7 eV Personal VOC Gas Monitor Accessories and Replacement Parts

There are a number of accessories and replacement parts available for the Cub 11.7 eV Personal VOC gas Monitor, which can be found below. Please contact us if you would like more information or to place an order.

FAQs

If you have any further questions, please inquire now.

No support FAQs found.

Cub 11.7 Personal VOC Gas Monitor Inquiry Form

Please complete the form below and a member of our team will contact you shortly.

Global Distributors

All ION Science distributors are trained to the highest standards to provide you with access to our product portfolio locally, along with the best possible service and support. Find your local representative.
