Hydrosteel® 6500: Advanced Hydrogen Flux Corrosion Monitor

The world’s first multipoint hydrogen flux monitor

Hydrosteel® 6500 is the industry’s leading instrument for real-time hydrogen flux measurement and corrosion monitoring in extreme environments. Using innovative magnetic probe technology, it captures flux directly from steel surfaces, delivering rapid, reliable data to optimise maintenance and corrosion control strategies. Ideal for petrochemical, refinery, and sour gas applications, this robust device supports both spot measurements and continuous monitoring, ensuring operational safety and reduced downtime.

IECEx_certification ATEX_certification

Enquire NowDownload Brochure

Hydrogen Flux Monitoring Technology

At the heart of Hydrosteel® 6500 is patented technology (GB2538113) that revolutionises corrosion monitoring. Our system uses a uniquely-designed magnetic attachment to secure a flexible metal plate directly onto steel surfaces. This ensures intimate contact without permanent modifications, allowing for the real-time capture of hydrogen gas – a direct indicator of corrosion.

Hydrosteel® 6500: Operation and Advantages

By drawing ambient air between the plate and the steel, the system collects hydrogen emanating from the metal. This captured gas is then analysed by a highly-accurate sensor, providing immediate measurements of hydrogen flux. Unlike traditional methods that rely on wall loss or corrosion coupons, our technology delivers high sensitivity and reliable data, directly from the service steel.

This innovation not only enhances measurement accuracy, but also enable multipoint continuous monitoring. Whether you need quick spot checks or ongoing corrosion surveillance across multiple locations, Hydrosteel® 6500 offers the flexibility and precision required, even for the most demanding industrial environments.

Key Features

  • Real-Time Measurement – Immediate detection of hydrogen flux for early corrosion warning.
  • Dual Operation Modes – Supports both spot measurements and fixed probe monitoring.
  • High Sensitivity Probes – Comes with both Large Roaming (LR) and Small Roaming (SR) probe options.
  • Robust Data Logging – Programmable logging cycles
  • User-Friendly Interface – Large backlit display with intuitive controls and USB data transfer
  • Rugged Design – IP54 rating and robust design for harsh environments.
  • Certifications – ATEX certified and Intrinsically Safe for harsh environments.

Typical Industries & Applications

  • Petrochemical and Refinery Process Monitoring
  • Sour Gas Pipelines and Corrosion Control Systems
  • Hydrogen Bakeout Verification in pre-weld scenarios
  • Materials Testing and Laboratory Corrosion Studies

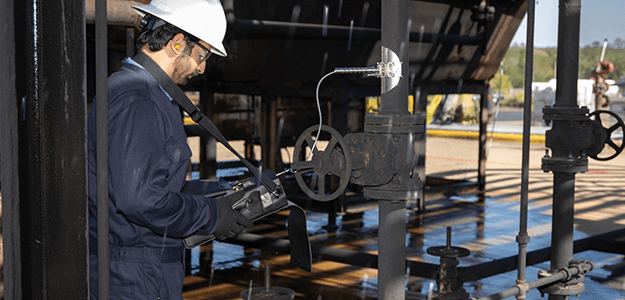

Man in hard hat assessing Hydrosteel 6500 product

2 Year Extended Warranty Available

Step 1) Purchase an ION Science Hydrosteel® 6500

Step 2) Register your instrument here within one month of purchase

Step 3) Receive a 2 year extended warranty confirmation!

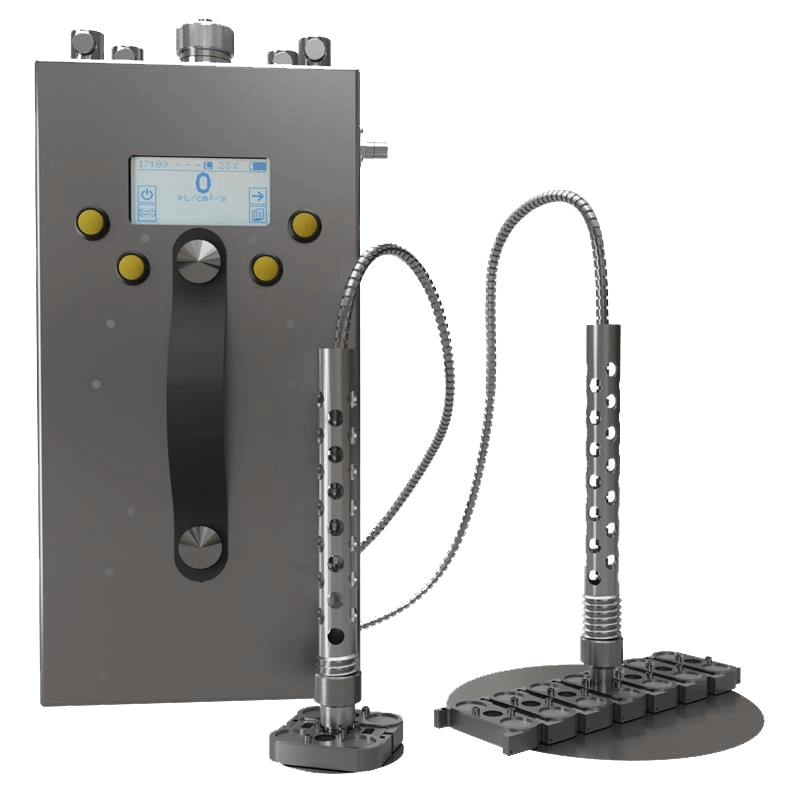

Probe Connection Ports
Rugged Housing
Small Roaming (SR) Probe
Large Roaming (LR) Probe
USB Data Port
Battery/Charging Port

What’s Included?

  • Hydrosteel®6500 instrument
  • Leather carrying case and harness
  • Large Roaming (LR) probe assembly
  • Small Roaming (LR) probe assembly
  • Spare Large Roaming (LR) plate assembly
  • Spare Small Roaming (SR) plate assembly
  • Flexible sample conduits (1m, 2m, & 4m)
  • Staubli® quick-fit connector
  • Charging cable and dedicated charger
  • User manual and warranty registration card

Technical Specification

Measurement Range 1 – 2,000 pL/cm2/s
Resolution 2 pL/cm2/s or ±10% accuracy (whichever is greater)
Dimensions 320 x 185 x 90 mm
Weight 4.1 kg (without leather case)
Operating Temperature -20ºC to + 60ºC; probes tolerate up to 350ºC
Battery Life Up to 70 hours of continuous operation
Certifications
  • ATEX
  • IECEx
Data Interface USB 2.0 with .csv export capabilities
Warranty 1 year (standard)
2 years when registered on the ION Science website

Video Library

Downloads

For supporting resources for Hydrosteel® 6500, please see below.

Hydrosteel® 6500 Accessories and Replacement Parts

There are a number of accessories and replacement parts available for the Hydrosteel® 6500, which can be found below. Please contact us if you would like more information or to place an order.

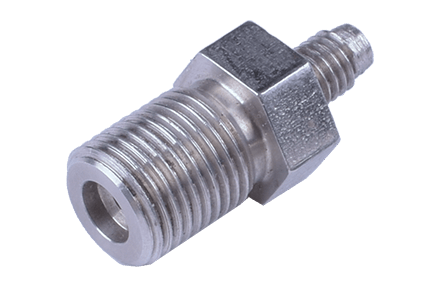

Staubli® Adaptor (modified)

Part Number: 6500258

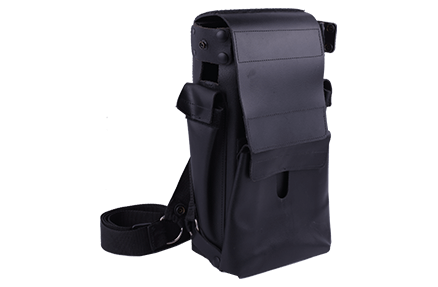

Hydrosteel® 6500 Leather Case

Part Number: 6500266

Large Probe Assembly

Part Number: A-6500256

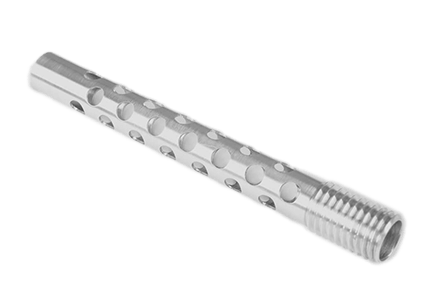

Handle – Probe

Part Number: 6500251

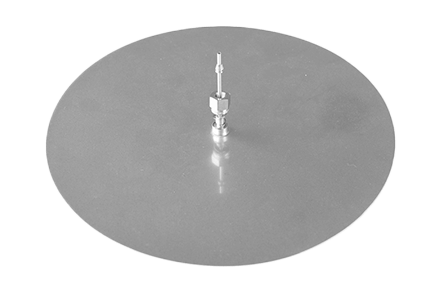

Collector Plate Assembly – Large

Part Number: A-6500261

Hydrosteel® 6500 Conduit 1m

Part Number: A-6500267

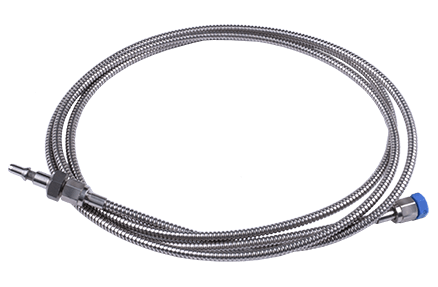

Hydrosteel® 6500 Conduit 2m

Part Number: A-6500268

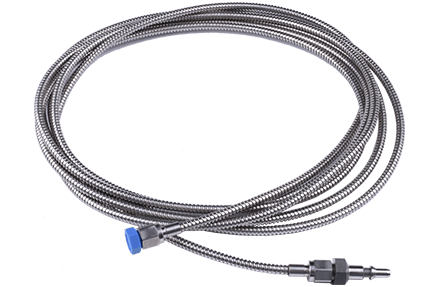

Hydrosteel® 6500 Conduit 4m

Part Number: A-6500269
