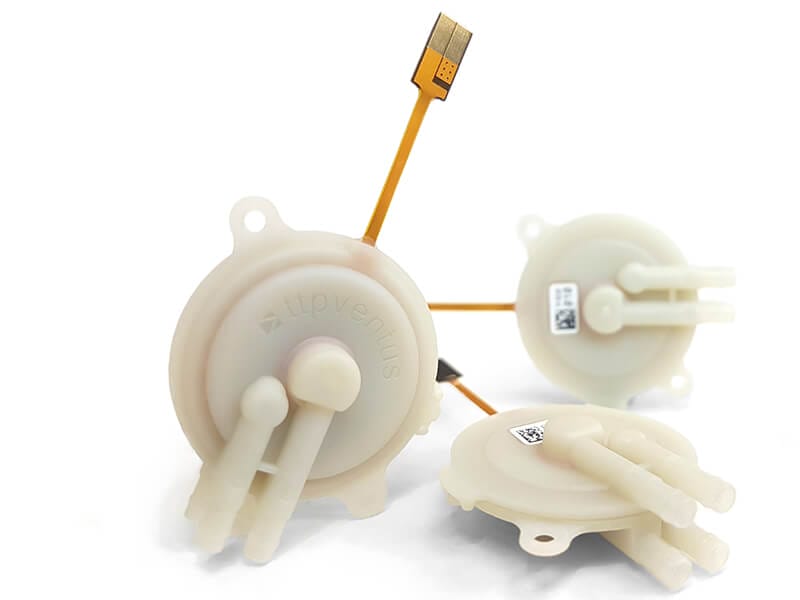

high performance micropump

XP Series Disc Pump

High Performance Micropump

The XP Series high performance micropump offers our highest performance, efficiency and widest operating temperature range of -25 to 55 °C, with this unique set of features Disc Pump enables advances across a broad spectrum of Gas Sampling, Detection, Monitoring and Analysis applications.

Inquire NowDownload Datasheet

Features

All of our pump designs have two pumping chambers. These are configured at the point of manufacture to be in series for higher pressure applications, or parallel for higher flow.

We offer three pump product lines: the entry-level BL Series, which strikes a balance between performance and cost; the XP Series with our highest performance and widest temperature range to suit the most demanding applications; and the LT Series, engineered for applications demanding long operational life in excess of 5,000 hours.

Key Features

  • Exceptional pressure and flow
  • Silent, vibration free operation
  • Ultrafast millisecond response
  • Maintenance free
  • Resistant to magnetic fields

Key Features

  • Lightweight, compact form
  • High-precision controllability
  • True pulsation-free flow
  • Infinite turn-down ratio

High Performance Micropump Technical Specification

XP Series – DP-S2-007 – Intermittent

Pressure Range 0 – 400 mBar
Flow Range 0 – 0.75 L/min
Vacuum Range 0 – 300 mBar

XP Series – DP-S2-007 – Continuous

Pressure Range 0 – 310 mBar
Flow Range 0 – 0.65 L/min
Vacuum Range 0 – 250 mBar

XP Series – XP-S2-028 – Intermittent

Pressure Range 0 – 400 mBar
Flow Range 0 – 1.00 L/min
Vacuum Range 0 – 310 mBar

XP Series – XP-S2-028 – Continuous

Pressure Range 0 – 310 mBar
Flow Range 0 – 0.85 L/min
Vacuum Range 0 – 250 mBar

XP Series DP-P2-008 Intermittent

Pressure Range 0 – 250 mBar
Flow Range 1.35 L/min
Vacuum Range 0 – 200 mBar

XP Series DP-P2-008 Continuous

Pressure Range 0 – 190 mBar
Flow Range 1.10 L/min
Vacuum Range 0 – 140 mBar

XP Series XP-P2-029 Intermittent

Pressure Range 0 – 210 mBar
Flow Range 0 – 2.10 L/min
Vacuum Range 0 – 180 mBar

XP Series XP-P2-029 Continuous

Pressure Range 0 – 150 mBar
Flow Range 0 – 1.80 L/min
Vacuum Range 0 – 120 mBar

Operational

Temperature Range -25 to 55 °C
Humidity Range 0 to 95 % RH
Pumping Medium Air
Noise Level <10 dB
Control Precision <0.1 %
Turn-down Ratio Infinite

Mechanical

Size 29 dia. x 11 mm
Weight 5 g
