Gas Detector Replacement Parts

Please select your ION Science Gas Detector or Leak Detector from the drop down list to view all available replacement parts for your instrument.

Probe

The probe attaches easily and securely to the end of the instrument.


Contact us to place an order quoting the below part number.

Part number: 880207
Calibration Adaptor

Connects to a typical 1/4" ID calibration pipe when calibrating using a gas flow regulator. NOTE: Not to be used with a demand flow regulator.


Contact us to place an order quoting the below part number.

Part number: 861476
Charge Cradle

Can charge a Tiger lithium ion battery in just 6.5 hours. It can charge battery packs separately or connected to the instrument.


Contact us to place an order quoting the below part number.

Part number: A-861220
Exhaust Barb

Screws into the exhaust port of the instrument allowing gas to be captured into a sample bag via typical 1/4 ID pipe.


Contact us to place an order quoting the below part number.

Part number: A-31153

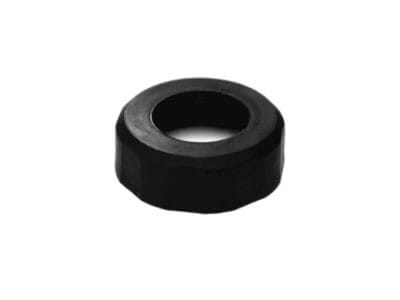

Filter Clamp

Filter clamp holds the PTFE filter in place and ensures an air tight seal in conjunction with the O-ring.


Contact us to place an order quoting the below part number.

Part number: 861579
Housing Clamp

Ensures the filter clamp is held in place ensuring a leak tight seal.


Contact us to place an order quoting the below part number.

Part number: 861218
Mains Power Adaptors

For use with the charge cradle, allows direct connection with UK, US, EU and AUS power sockets.


Contact us to place an order quoting the below part number.

Part number: 1/VS-22

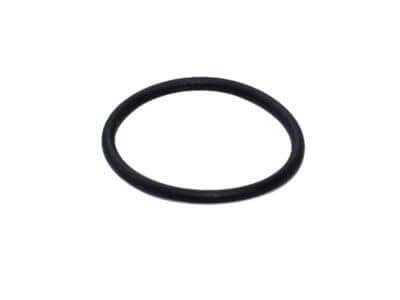

O-Ring (Tiger Filter Clamp)

Used to make an air tight seal ensuring all gas passes through the PTFE filter.


Contact us to place an order quoting the below part number.

Part number: 5/OV-02

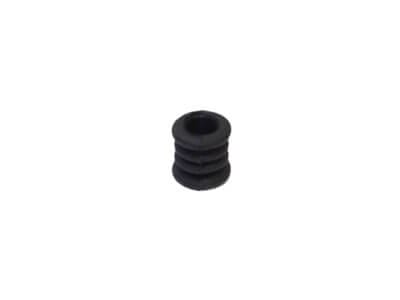

Probe Seal

The probe seal sits in the filter clamp to keep it air tight.


Contact us to place an order quoting the below part number.

Part number: 880202
Tiger PTFE Filters (Pack of 10)

Used to protect the instrument from debris and water ingress.


Contact us to place an order quoting the below part number.

Part number: A-861632

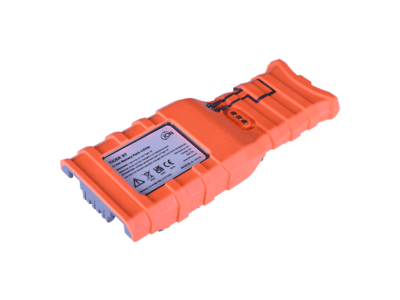

Rechargeable Battery

Offers up to 24 hours of continuous use.


Contact us to place an order quoting the below part number.

Part number: A-861240
Rubber Boot

Protects your instrument from damage during general use.


Contact us to place an order quoting the below part number.

Part number: 861205

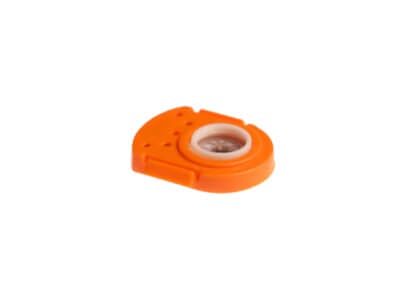

White Electrode Stack

Designed for use within the ION Science PID sensor.


Contact us to place an order quoting the below part number.

Part number: A-846267

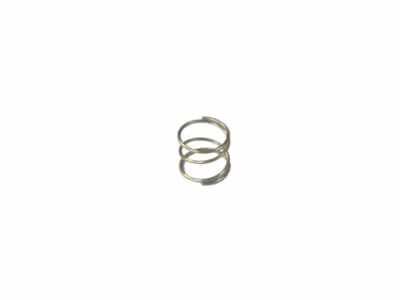

Lamp Spring

The lamp spring ensures the lamp stays tightly coupled with the electrode stack.


Contact us to place an order quoting the below part number.

Part number: 846600
