ARA SO2

SO2 Single Gas Detector

ARA SO2 gas detector is a cost effective personal sulfur dioxide detector with 24 months of continuous operation. This wearable SO2 gas detector has only one button to make using the SO2 gas detector simple and alerts workers when SO2 health levels exceed set safety levels.

Typical applications for ARA SO2 single gas detector includes:

  • Site wide safety
  • Confined space entry
  • Plant shutdown processes
  • First response safety

qps_ certification

Enquire Now

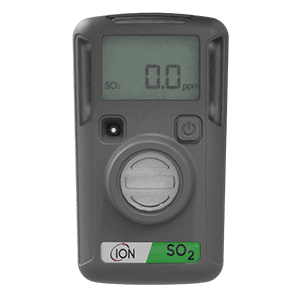

so2_single_gas_detector

Features

ARA SO2 single gas detector has a self test feature that tests the audio, visual and vibrate alarms to give you confidence before use!

The ARA IR link* allows you to download 30 recent event logs and configure setting including:

  • User ID
  • Low / High SO2 alarms
  • Self test intervals
  • Bump test intervals

Ultimate Performance

  • 24 months of continuous operation
  • Live SO2 readings
  • Event logging download

Ultimate Safety

  • Instantaneous SO2 alarms
  • Adjustable high/low sulfur dioxide alarms
  • Calibration and bump test reminders

Ultimate Flexibility

  • Lifetime remaining countdown helps users to plan for future projects and site shutdowns
  • Displayed data option (live reading or lifetime remaining)

Technical Specification

Specification
Value
Sensor Type Single plug-in electrochemical cell
Detection Range H2S: 0 to 100 ppm
CO: 0 to 300 ppm
SO2: 0 to 50 ppm
O2: 0 to 25 %
Event Log Storage Last 30 events
Battery 3.6 Vdc, 1.65 Ah, lithium battery
Battery Life / Shelf Life Standard models: 24 months of operations (2 mins alarms per day)
Hibernation models: 36 months of operation (2 mins per day and using sleep function)12 Month Shelf Life
User Options User ID
Low Alarm
High Alarm
Displayed Data (live reading or lifetime remaining)
Bump-Test Interval
Calibration Interval
Self-test Interval
Alarms Audio Alarm: (95 dB @ 10 cm)
Visual Alarm: LED
Vibrating Alarm: Vibrator (operates at ± 10 °C)
Temperature H2S, CO, SO2: – 40 to 60 °C
O2: – 30 to 60 °C
Humidity: 5 – 95 % RH
Ingress Protection IP67
Display Liquid Crystal Display (LCD)
Weight and Dimensions 92 g (3.2 oz)
87 x 50 x 29 mm (3.4 x 2.0 . 1.1 inch)

* All specifications quoted are at calibration point and under the same ambient conditions.
Specifications are based on isobutylene calibration at 20 ËšC, 90% RH and 1000 mBar
*Model dependant.

Download Brochure

ION ARA DOCK4

The ARA DOCK4 is a bump test and calibration station that can test up to 4 ARA Single Gas Detectors simultaneously reducing gas usage and testing time. The ARA DOCK4 is simple to operate and records calibration and bump test reading along with the serial number, date and time.

To find out more about the ARA DOCK4 available from ION Science, including the SO2 Single Gas Detector, please fill out the form HERE.

*ARA DOCK4 is sold separately

ARA DOCK4 ManualARA DOCK4 Datasheet
ARA DOCK4 Calibration dock

Video Library

ARA DOCK4

Find out more about the ARA DOCK4 Bump Test and Calibration Station.

Find out more about ARA Single Gas Detector Range

Find out more about the ARA gas detector, its functionality and models for H2S, CO, SO2 and O2 gas detection.

What’s in the box?

See the contents in the box and what you receive when you order an ARA gas detector for worker safety
