Ultimate Solution for Detecting SF6 and now C4-FN Leaks

SF6 LeakCheck P1 XTL Leak Detector.

The ultimate solution for the detection of Sulfur hexafluoride.

This advanced SF6 Leak Detector is set to redefine safety and environmental monitoring by efficiently detecting a wide range of hazardous gases beyond just sulphur hexafluoride, including Disulfur decafluoride, Hexafluoropropylene, Tetrafluoro-2-(trifluoromethyl) propanenitrile, and 2,3,3,3-tetrafluoropropene.

Enquire NowDownload Brochure

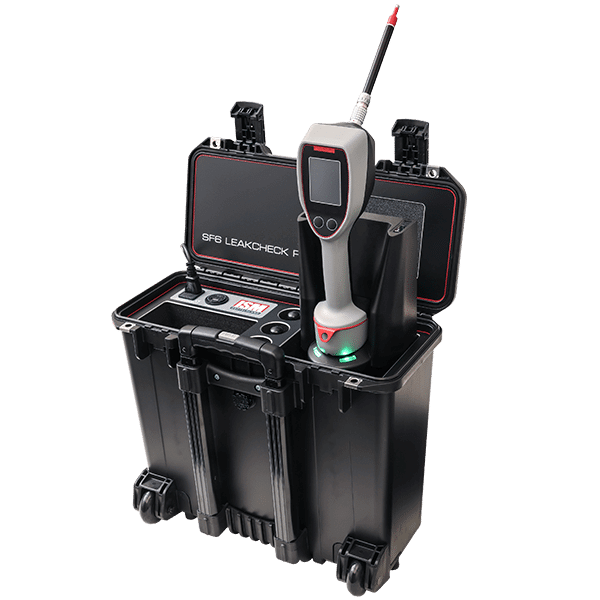

sf6_leakcheck_p1p_xtl_header

Reliable SF6 Leak Detector

Our advanced SF6 Leak Detector operates on the cutting-edge Negative Ion Capture (NIC) detection principle, ensuring precision and reliability. With sensitivity levels that exceed industry standards, our device can detect even the slightest gas leaks, with a standard sensitivity of 1 x 10-7 cc/sec, 1 ppm, and 0.01 g/a. For high-sensitivity applications, it boasts an impressive sensitivity of 1.0E-8 cc/sec, 0.1 ppm, and 0.001 g/a. Rapid response is a key feature, as our system achieves a T90 response time of approximately 0.5 seconds and a T10 response time of approximately 0.5 seconds.

You have the flexibility to choose your preferred alert method, be it selectable handgun vibration, audio signals, or LED projection. The audio alerts are intelligently tied to leak rate and condition signals for enhanced situational awareness. Our device is equipped with a user-friendly 2.8-inch touch display on the handgun, making it easy to monitor and control. Additionally, it offers robust self-diagnostic capabilities, checking sample flow, sensor condition, battery condition, and hardware faults. You can count on reliable power with a LiPo battery in the handgun and inductive charging at the docking station, while the console relies on LiFe batteries. It can operate in a wide range of temperatures, from -10 °C to +60 °C for storage and 0 °C to 50 °C during operation. For added convenience, it accommodates a global power supply of 100 – 240V (50/60 Hz). Trust in our gas leak detection system to ensure safety and peace of mind in various environments.

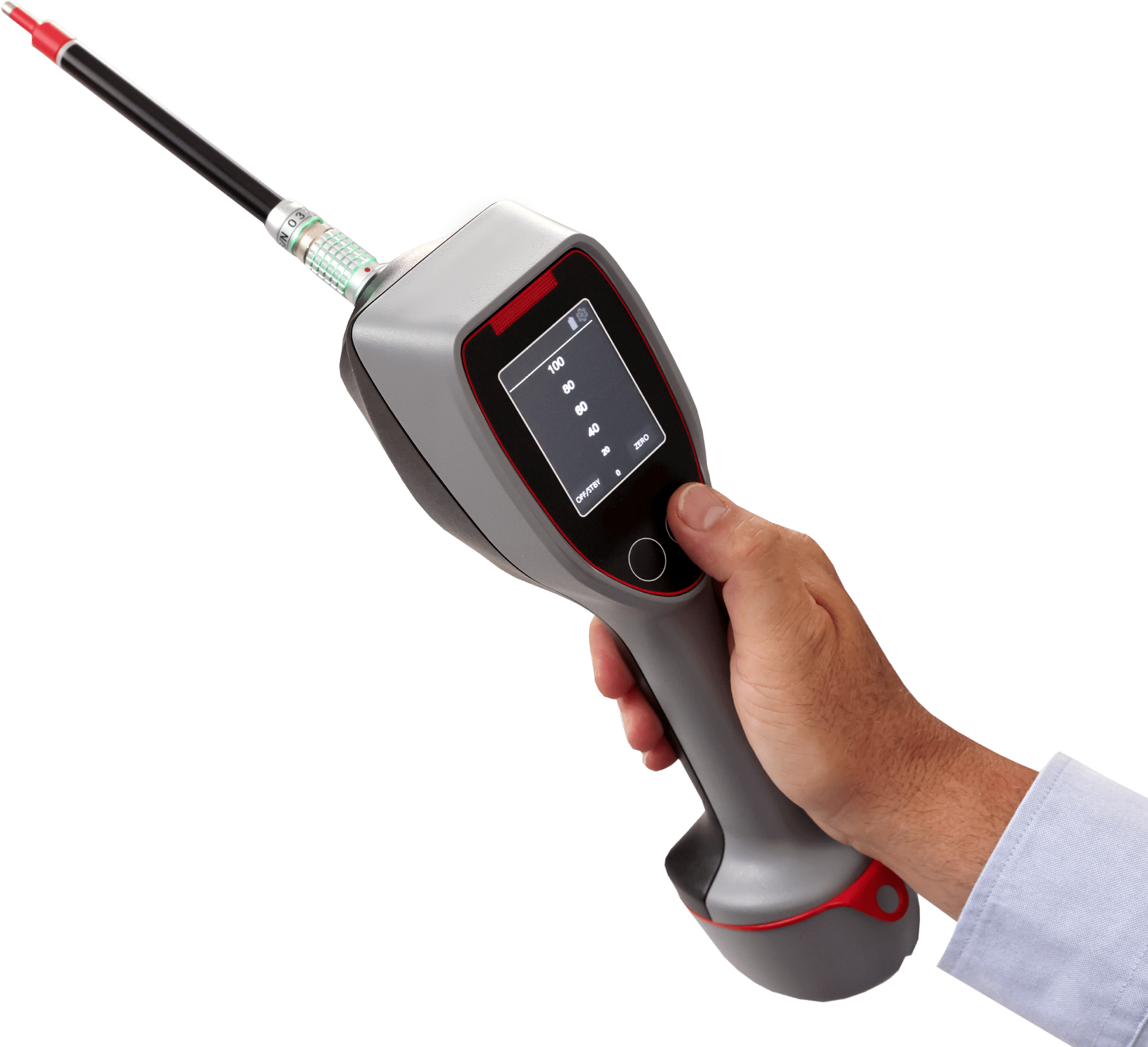

sf6_leakcheck_p1p_xtl_handgun

Key Features

  • Easy to use – The SF6 Leak Detector is designed with ease of use in mind.
  • High Sensitivity – This instrument has high sensitivity for both leak rates and gas concentrations.
  • Easily Transportable – The trolley style protector case allows the instrument to be easily moved from one place to another.
  • Immune to 100% SF6 – Even after exposure to high gas concentrations, the instrument recovers without any loss in sensitivity, accuracy or response time. (For more information on SF6, click here.)
  • Negative Ion Capture Technology – This instrument utilises the award winning Negative Ion Capture (NIC) Technology.
  • Fast Response Time & Clear Down – The SF6 instrument requires no warm up or stabilisation time and has a response time of <0.5 seconds.

Typical Applications

  • SF6 leak testing and measurement in high voltage switchgear
  • Breathing apparatus testing
  • Medical device testing
  • Leak integrity assurance to ultra low levels on equipment containing (H)CFC’s in medical, refrigeration and air conditioning units

2 Year Extended Warranty Available

Step 1) Purchase an ION Science SF6 LeakCheck P1 XTL Leak Detector

Step 2) Register your instrument here within one month of purchase

Step 3) Receive a 2 year extended warranty certificate!

Product Contents

  • SP6 LeakCheck P1 XTL Wireless handgun
  • SP6 LeakCheck P1 XTL Console with Docking Station for Handgun
  • SmartSensor, Pre-Calibrated
  • Mains Lead
  • Instruction Manual
  • Calibration Certificate
sf6_leakcheck_p1_xtl_leak_detector
Storage area for user manual and accessories
No training required – switch on and go
Robust trolley style case for maximum protection
Lightweight 2 button wireless handgun
Docking station with inductive charging
Self diagnostics for the sample flow, hardware faults, sensor and battery condition

Technical Specification
SF6 Leak Detector

Specification Value
Detection Principle Negative Ion capture (NIC)
Sensitivity Standard:1 x 10-7 cc/sec, 1 ppm, 0.01 g/a
HIGHsense: 1.0E-8 cc/sec, 0.1 ppm, 0.001 g/a
Response Time T90 Approximately 0.5 seconds
Response Time T10 Approximately 0.5 seconds
Alarm Selectable handgun vibration, audio and LED projection
Audio Frequency/ repeat rate coupled to leak rate, condition signals
Display 2.8″ touch display on handgun
Self Diagnostic Sample Flow
Sensor Condition
Battery Condition
Hardware Fault
Battery Handgun LiPo, inductive charge at docking station
Console LiFe
Temperatures Storage : –10 °C to +60 °C
Operating: 0 °C to 50 °C
Power Supply 85 – 265V (50/60 Hz)
Dimensions Console: 420 (H) x 240 (D) x 470 mm (W)
Handgun: 300 (H) x 105 (D) x 90 (W)
Weight Handgun: 750g
