Introducing SF6 LEAKCHECK P1 XTL

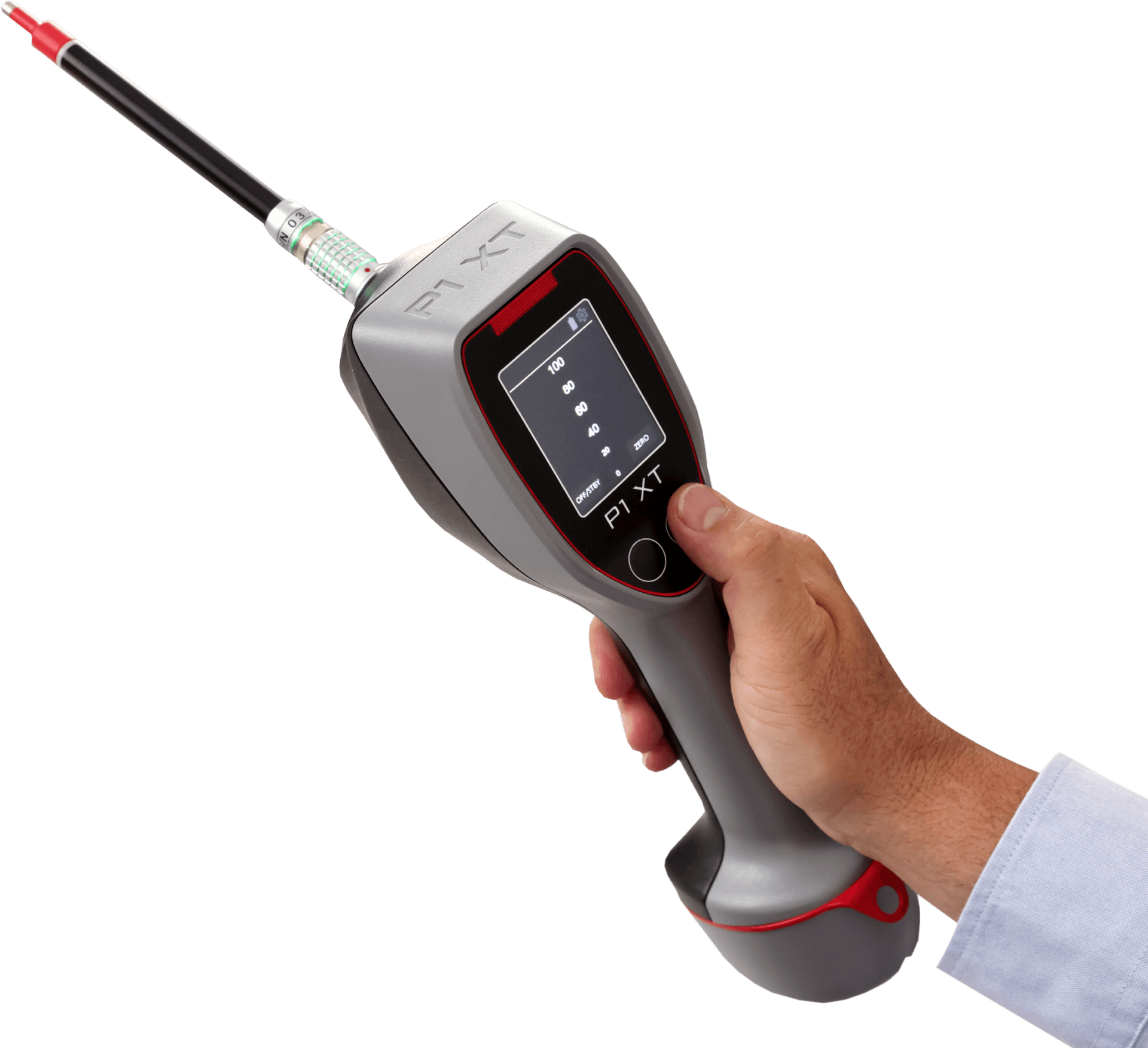

Introducing SF6 LEAKCHECK P1 XTL: The Ultimate Solution for Detecting SF6 and now C4-FN Leaks

Gas leak detection just took a giant leap forward with the introduction of SF6 LEAKCHECK P1 XTL. This innovative solution is purpose-built to tackle a critical customer problem:
Identifying SF6 and C4-FN leaks with unmatched precision and efficiency.

Sulfur hexafluoride (SF6) remains the default gas widely employed as a highly effective insulator in medium and high voltage switchgear, as well as electricity transmission and distribution systems across the world. However, SF6 is also among the most potent greenhouse gases, making leak testing a critical operational activity. In a groundbreaking development for the field of gas leak detection, we are proud to unveil the SF6 LEAKCHECK P1 XTL, a truly portable, precise, and highly sensitive instrument designed to address this crucial need.

Beyond SF6: Expanding Detection Capabilities

SF6 P1 XTL goes beyond the confines of sulfur hexafluoride and is now capable of efficiently detecting C4-FN (Chemical formula:C4F7N), this additional upgrade feature expands the solution to address your diverse gas detection needs.

A Comprehensive Approach to Leak Detection

SF6 LEAKCHECK P1 XTL represents the pinnacle of innovation and engineering excellence. Encased in a rugged heavy duty Peli Protector Case, complete with a docking station for the wireless handgun. This instrument guarantees maximum reliability and ultimate ease of use. Every vital parameter, including sample flow rate, is continuously monitored and regulated. The leak detector is designed to proactively identify gas leaks. By default, the instrument is set in ‘search mode,’ featuring a rapid bar graph display on the handheld unit. This ensures that no leak, no matter how minor, goes unnoticed.

Why SF6 LeakCheck P1 XTL?

Combined with the above capabilities, SF6 LeakCheck P1 XTL hosts a wealth of beneficial
features, including;

• Going beyond the confines of SF6, capable of efficiently detecting C4-FN
• Wireless handgun which requires no warm-up time
• Measures leak rates down to 1×10-7 ml/s on the standard model, and 1×10-8 ml/s on the HIGHSense model.
• Detects leaks in less than 0.5 seconds
• Default ‘search mode’ ensures that no leaks go unnoticed.
• Replaceable SmartSensor with a lifetime of up to 300 hours.

Remarkable Sensitivity: A Reliable Partner

Boasting exceptional sensitivity for both leak rates and gas concentrations, SF6 LEAKCHECK P1 XTL is your reliable partner. The SF6 LeakCheck P1 XTL is available in two sensitivity models: the Standard model with a sensitivity of 1×10-7 ml/s and the HIGHSense model with a sensitivity of 1×10-8 ml/s. This exceptional sensitivity enables the swift detection of even the smallest leaks, ensuring the safety of workforces from SF6 exposure. Featuring a tough, slimline, heavy duty protector case facilitates easy mobility, making it an ideal choice for a wide range of industries.
Even in scenarios where it is exposed to high gas concentrations, the instrument is robust with a quick recovery time bouncing back without compromising sensitivity, accuracy, or
response time. Thanks to the award-winning Negative Ion Capture (NIC) Technology, the SF6 LEAKCHECK P1 XTL demands no warm-up or stabilization time, delivering a lightning fast T90 response of under 0.5 seconds.

Precision at Your Fingertips: Measuring Mode

When a leak is localized, a simple button press transitions the instrument to ‘Measuring Mode,’ with the handheld display transforming into a numerical readout. This enables precise leak measurement, with the leak rate displayed directly on the handgun screen.

For your convenience, all components subject to wear are conveniently placed in the exchangeable SmartSensor. It can be replaced within seconds, while the rest of the system requires virtually no maintenance over extended periods.

When SF6 LeakCheck P1 XTL is registered on the ION Science website, customers can enjoy 2 years of extended warranty, providing peace of mind that your instrument is covered. SF6 LEAKCHECK P1 XTL is the solution to your gas leak detection needs.

Redefine worker safety and environmental monitoring, with this high-precision, groundbreaking innovation.
