C0 Gas Detector

Personal Carbon Monoxide (CO) Detector

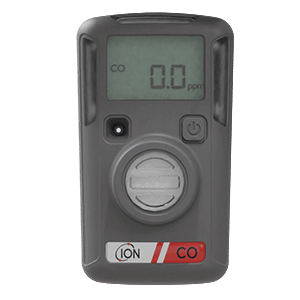

ARA CO Detector

The Carbon Monoxide (CO) single gas detector is a cost effective personal detector with 24 months of continuous operation. This wearable & personal CO gas detector has only one button to make use simple and alerts workers when Carbon Monoxide exceeds set safety levels.

Typical applications for personal carbon monoxide detectors includes:

  • Site wide safety
  • Confined space entry
  • Plant shutdown processes
  • First response safety

qps_ certification IECEx certification ATEX certfication

Inquire Now

Personal Carbon Monoxide Detector

Features

Our personal CO detectors have a self test feature that tests the carbon monoxide audio, visual and vibration alarms to give you confidence before use!

The ARA IR link* allows you to download 30 recent CO event logs and configure settings including:

  • User ID
  • Low / High carbon monoxide alarms
  • Self test intervals
  • Bump test intervals

Ultimate Performance

  • 24 months of continuous operation
  • Live & personal carbon monoxide readings
  • Event logging download

Ultimate Safety

  • Instantaneous alarms
  • Adjustable high/low CO alarms
  • Calibration and bump test reminders

Ultimate Flexibility

  • Lifetime remaining countdown helps users to plan for future CO based projects and site shutdowns
  • Displayed carbon monoxide data option (live reading or lifetime remaining)

Technical Specification

qps_ certification IECEx certification ATEX certfication

Specification
Value
Sensor Type Single plug-in electrochemical cell
Detection Range H2S: 0 to 100 ppm
CO: 0 to 300 ppm
SO2: 0 to 50 ppm
O2: 0 to 25 %
Event Log Storage Last 30 events
Battery 3.6 Vdc, 1.65 Ah, lithium battery
Battery Life Standard models: 24 months of operations (2 mins alarms per day)
Hibernation models: 36 months of operation (2 mins per day and using sleep function)
User Options User ID
Low Alarm
High Alarm
Displayed Data (live reading or lifetime remaining)
Bump-Test Interval
Calibration Interval
Self-test Interval
Alarms Audio Alarm: (95 dB @ 10 cm)
Visual Alarm: LED
Vibrating Alarm: Vibrator (operates at ± 10 °C)
Temperature H2S, CO, SO2: – 40 to 60 °C
O2: – 30 to 60 °C
Humidity: 5 – 95 % RH
Ingress Protection IP67
Display Liquid Crystal Display (LCD)
Weight and Dimensions 92 g (3.2 oz)
87 x 50 x 29 mm (3.4 x 2.0 . 1.1 inch)

* All specifications quoted are at calibration point and under the same ambient conditions.
Specifications are based on isobutylene calibration at 20 ËšC, 90% RH and 1000 mBar
*Model dependant.

Download Brochure

ION ARA DOCK4

The ARA DOCK4 is a bump test and calibration station that can test up to 4 ARA Single Gas Detectors simultaneously reducing gas usage and testing time. The ARA DOCK4 is simple to operate and records calibration and bump test reading along with the serial number, date and time.

To find out more about the ARA DOCK4 available from ION Science, including the CO Single Gas Detector, please fill out the form HERE.

*ARA DOCK4 is sold separately

ARA DOCK4 Manual
ARA DOCK4 Calibration dock

Video Library

ARA DOCK4

Find out more about the ARA DOCK4 Bump Test and Calibration Station.

What does PPM look like?

The term Part Per Million (PPM) is fairly self-explanatory, it’s simply the dilution of one matter into another but what does it actually look like?

What’s in the box?

See the contents in the box and what you receive when you order an ARA gas detector for safety compliance monitoring!

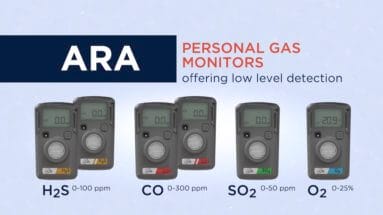

Find out more about ARA Single Gas Detector Range

Find out more about ARA gas detector, its functionality and models for H2S, CO, SO2 and O2 gas detection.

Downloads

For further supporting documentation for ARA CO single gas detector, please see below.

Personal CO Gas Detector – Accessories and Replacement Parts

For further supporting documentation, please see below.

Global Distributors

All ION Science distributors are trained to the highest standards to provide you with access to our product portfolio locally, along with the best possible service and support. Find your local representative.

Personal Carbon Monoxide Detector Inquiry Form

Please complete the form below and a member of our team will contact you shortly.
