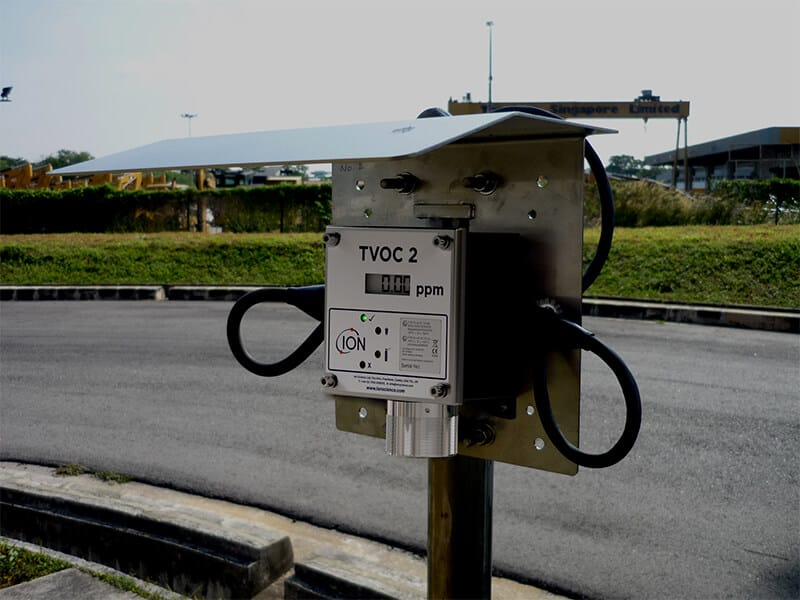

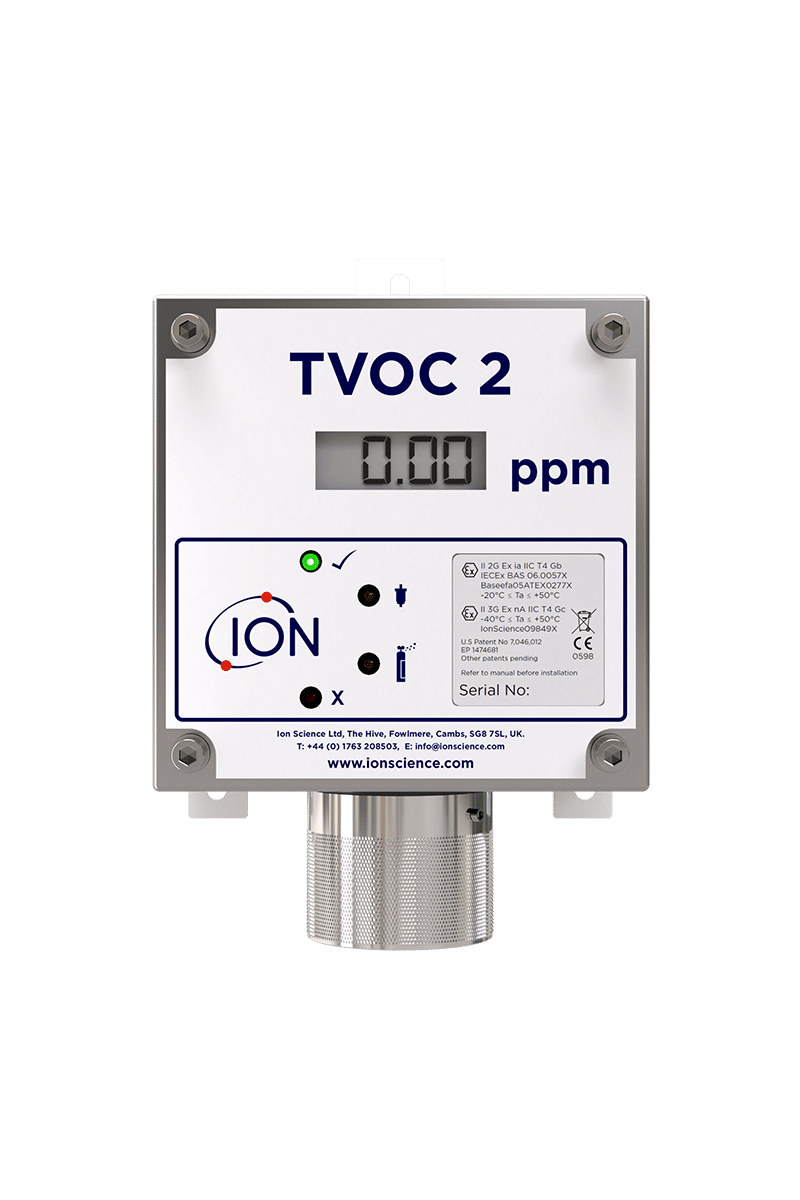

Continuous VOC Gas Detector
This robust fixed continuous VOC gas detector has a selectable detection range of 0 – 10 ppm, 0 – 100 ppm or 0 – 1000 ppm and is ideal for use in manufacturing and process industries where VOCs are typically present. With a 4-20 mA analogue output, the fixed continuous VOC gas detector can be simply integrated into a Distributed Control System (DCS) to provide warnings and enable control of high VOC levels in your working environment.
Continuous Gas Detector – Features
The TVOC 2 fixed continuous VOC gas detector has ATEX approvals that enable a 3 wire TVOC system to be used in Zone 2 hazardous areas without safety barriers, whilst its ATEX and IECEx approvals allow TVOC 2 to be used in Zone 1 hazardous areas with safety barriers.
Simple to install service and calibrate, TVOC 2 fixed continuous VOC gas detector requires no hot work permit and the PID sensor is accessible and changeable in a matter of seconds.
- PID independently verified as best performing on the market
- In-built humidity resistance with no need to compensate
- Anti-contamination design for extended field operation
- Variable duty cycle prolongs run time
- Accurate continuous results over all environmental conditions
- Rugged and robust design withstands harsh environments
- Large LCD display for clear readings
- ATEX and IECEx approved
- Simple to use – minimal training required
- Easy access PID sensor for fast, simple servicing
- Simple calibration procedure
- Easily integrated into a control system
II 2G Ex ia IIC T4 Gb (-20 °C ≤ Ta ≤ +50 °C)
II 3G Ex nA IIC T4 (-40 °C ≤ Ta ≤ +50 °C)
IECEx BAS 06.0057X
|Ingress Protection||Designed to IP65 |
Sensor ingress protection IP54
|Power||5 – 28 VDC Max 130 mA|
|Output||4-20 mA requires a 8-35 VDC power supply |
For IS requirements 8-30 VDC power supply
|Range||0 to 10 pp, 0 to 100, 0 to 1000 ppm (user selectable)|
|Sampling||Diffusion (can be pumped if required using an adaptor)|
|Display||7 segment, 4 digit LCD, 4 colour LEDs|
|Response||Sensor – T90 < 5 secs|
|Accuracy||0 to 100 ppm: ± 5 % calibration point |
100 to 1000 ppm: ± 10 % at calibration points
|Calibration||Accessed via magnetic switch |
100 ppm isobutylene via calibration kit accessory
|Temperature||Operating: – 20 to 50 °C (- 4 to 122 °F) |
Humidity: 0-95% RH (non-condensing)
|Weight and Dimensions||Instrument: 1.4 kg (3.1 lb) Packed: 1.6 kg (3.5 lb) |
Dimensions: 188 x 126 x 78 mm (7.4 x 4.9 x 3″)
|4 – 20 mA Alarm Levels||Selectable 2 mA & 3.5 mA options|
For further supporting documentation for TVOC 2 fixed continuous VOC gas detector, please see below.
