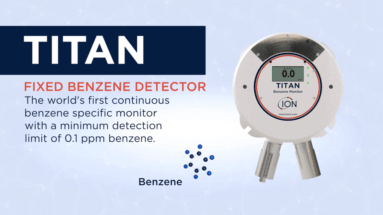

Fixed benzene specific gas monitor
The fixed benzene specific gas monitor is wall-mounted with a dynamic monitor range or 0 – 20 ppm with 0.1 ppm sensitivity to benzene. Our fixed benzene gas monitor samples gas from the environment once per minute and within just 60 seconds an accurate benzene measurement is displayed. The Titan fixed benzene specific gas monitor provides an immediate warning alarm system with two operator configurable levels, ensuring your workers are kept safe and protected to the standards required on site.
The titan fixed benzene specific gas monitor has continuous, real-time measurement allowing trends to be monitored over time, and communicated via 4-20 mA or RS485. Data is stored internally and can be downloaded remotely for analysis.
Designed to be easily installed and serviced, the modular design of the fixed benzene gas monitor allows the Ex d case to be installed well in advance of commissioning. The internal service module can be removed and replaced as a remotely serviceable plug and play cartridge.
- Fast and accurate monitoring of benzene down to 0.1 ppm
- Minute to minute sampling providing continuous real-time data
- Robust separation method ensures benzene specific readings
- Internally regulated heating for stable operation at extreme temperatures
- Clear display & visual alarms for indication of benzene levels
- Two user-definable independent alarm levels including optional real-time STEL calculation
- Two relay outputs provide an immediate warning alarms
- Meets ATEX & IECEx, UL and CSA standards
- Modular design for ease of installation and servicing
- 2-year warranty when instrument registered online
- In-built humidity resistance with no need to compensate
- Service-free six months operation
|Sensor Type||PID, 10.6 eV lamp coupled with selective filtering|
|Selectivity||Benzene specific within typical petrol chemical matrix|
|Range||0 – 20 ppm|
|Measuring Frequency||One minute|
|Lower Limit of Detection||0.1 ppm|
|Accuracy||± 0.1 ppm or ± 10 %, whichever is greater|
|Temperature Stability||Internally heated|
|Flow Rate||≥ 160 ml/min in Ambient conditions|
|Display||Graphical BW LCD 64 x 128 pixels with back light |
Bright LEDs for normal operation, fault and alarm
Two magnetic switches for menu operation
II 2G Ex d II B+H2 T4 Gb
Tamb. = -20 oC to +55 oC
IECEx FTZU 140030X
Conforms to UL 61010-1,
UL 60079-0, UL 60079-1
Certified to CAN/CSA-C22.2
|Ingress Protection Rating||Designed to IP65 (cable gland dependant)|
|Humidity||0 – 99 % RH|
|Minimum Service Period||6 months – Hydrophobic & carbon filter replacement |
12 months – PID lamp, electrode stack, pump and column replacement
|Cable Entry||Two 3/4 NPT gland threads|
|Power||Vin (nom) 24 V DC @ 3.2 A (recommended) |
Vin (max) 32 V DC @ 2.4 A
Vin (min) 19 V DC @ 4.0 A
|Communication||Isolated 4 – 20 mA output |
Isolated RS 485 Modbus (simplex/half duplex or fully duplex)
USB when lid removed with PC software
|Data Storage||On board MMC, minimum of 6 months|
|Relay Output||Two isolated outputs, voltage free, 24 V DC @ 1.25 A|
|Weight and Dimensions||15 kg (33 lb) |
219 x 219 x 17 mm (8.6 x 8.6 x 6.8 ” approx)
|Gas Sample Line||10 m max length, PTFE, 6 mm OD, 4 mm ID|
All specifications quoted are at calibration point and under the same ambient conditions.
Specifications are based on isobutylene calibration at 20 ˚C, 90% RH and 1000 mBar
