(MVI) Mercury Vapor Indicator

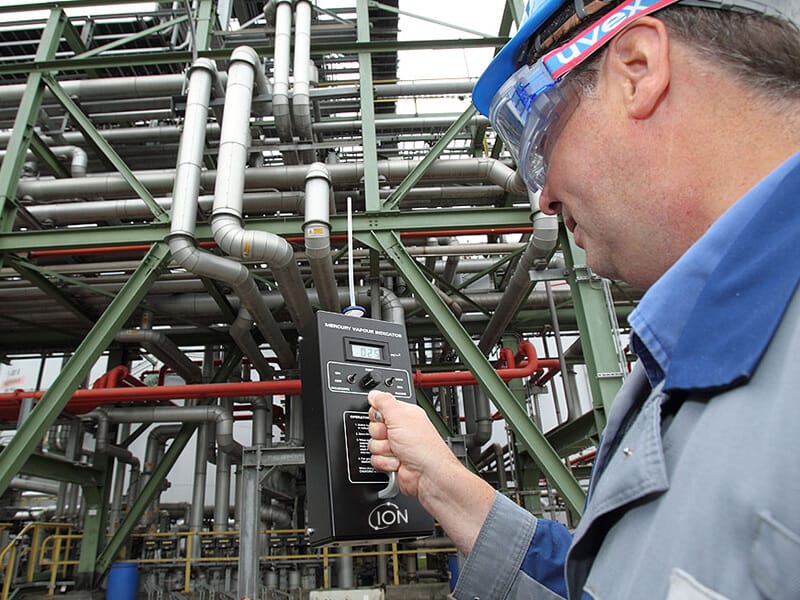

Portable Mercury Vapor Indicator
The Mercury Vapor Indicator utilizes dual beam UV absorption technology, which means that the portable mercury vapor indicator does not saturate or need regenerating between readings – like traditional gold film detection methods – eliminating the mercury indicators downtime.
Fast and accurate, the portable mercury vapor indicator gives a real-time response and is ready to detect instantly. The Mercury Indicator provides continuous readings and offers two detection ranges: 0.1 to 199 and 1 to 1999 microgram/cubic meter.
Features
The portable Mercury Vapour Indicator utilises a high-performance pump for fast mercury indication and recovery. The instrument’s audible alarm and large digital display clearly indicate the levels of mercury present.
Ergonomically designed with simple, one-handed operation MVI is the ideal survey unit for rapid and accurate mercury detection.
Ultimate Performance
- Fast 3 second indicator response
- Range: 0.1 – 199 & 1 – 1999 microgram / cubic meter
- Fast indication and recovery
- Robust and withstands harsh environments
Ultimate Safety
- Fast indication and recovery
- Audible alarm gives clear indication of mercury vapours
- Highly accurate mercury indicator readings
Technical Specification
Specification | Value |
---|---|
Detector | Dual Beam Ultraviolet Absorption Module |
Accuracy | ± 5 micrograms or ± 10 % reading |
Operation | After warm up MVI gives real time mercury vapour concentration |
Alarm | Audible alarm factory pre-set to 20 microgram/cubic meter |
Instrument Range | 0.1 to 199 and 1 to 1999 microgram cubic meter |
Temperature | 10 °C to 50 °C |
Weight and Dimensions | 6 lbs 10 oz (3 kg) 145 x 295 x 80 mm |
Repeatability | 35 % FSD @ 1 μg/m3 |
Batteries | NiMH – last up to 4 1/2 hours from full charge |
Power | NiMH |
Response | 3 seconds |
