(MVI) Mercury Vapour Indicator

Portable Mercury Vapour Indicator

The Mercury Vapour Indicator utilises dual beam UV absorption technology, which means that the portable mercury vapour indicator does not saturate or need regenerating between readings – like traditional gold film detection methods – eliminating the mercury indicators downtime.

Fast and accurate, the portable mercury vapour indicator gives a real-time response and is ready to detect instantly. The Mercury Indicator provides continuous readings and offers two detection ranges: 0.1 to 199 and 1 to 1999 microgram/cubic meter.

Enquire NowDownload Brochure

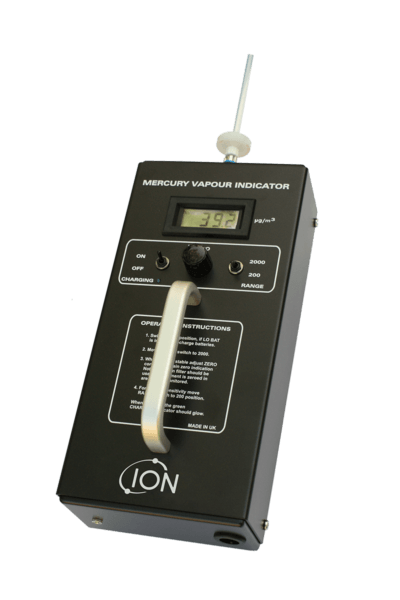

portable_mercury_vapour_indicator

Features

The portable Mercury Vapour Indicator utilises a high-performance pump for fast mercury indication and recovery. The instrument’s audible alarm and large digital display clearly indicate the levels of mercury present.

Ergonomically designed with simple, one-handed operation MVI is the ideal survey unit for rapid and accurate mercury detection.

Ultimate Performance

  • Fast 3 second indicator response
  • Range: 0.1 – 199 & 1 – 1999 microgram / cubic meter
  • Fast indication and recovery
  • Robust and withstands harsh environments

Ultimate Safety

  • Fast indication and recovery
  • Audible alarm gives clear indication of mercury vapours
  • Highly accurate mercury indicator reading

Technical Specification

Specification
Value
Detector Dual Beam Ultraviolet Absorption Module
Accuracy ± 5 micrograms or ± 10 % reading
Operation After warm up MVI gives real time mercury vapour concentration
Alarm Audible alarm factory pre-set to 20 microgram/cubic meter
Instrument Range 0.1 to 199 and 1 to 1999 microgram cubic meter
Temperature 10 °C to 50 °C
Weight and Dimensions 6 lbs 10 oz (3 kg)
145 x 295 x 80 mm
Repeatability 35 % FSD @ 1 μg/m3
Batteries NiMH – last up to 4 1/2 hours from full charge
Power NiMH
Response 3 seconds
Download Brochure

Video Library

MVI – Mercury Vapour Indicator

The instrument’s dual-beam UV absorption technology means that the mercury vapour detector does not saturate or need regenerating between readings – like traditional gold film detection methods – eliminating instrument downtime.

Portable Mercury Vapour Indicator – Accessories and Replacement Parts

There are a number of accessories and replacement parts available for the portable mercury vapour detector, which can be found below. Please contact us if you would like more information or to place an order.
