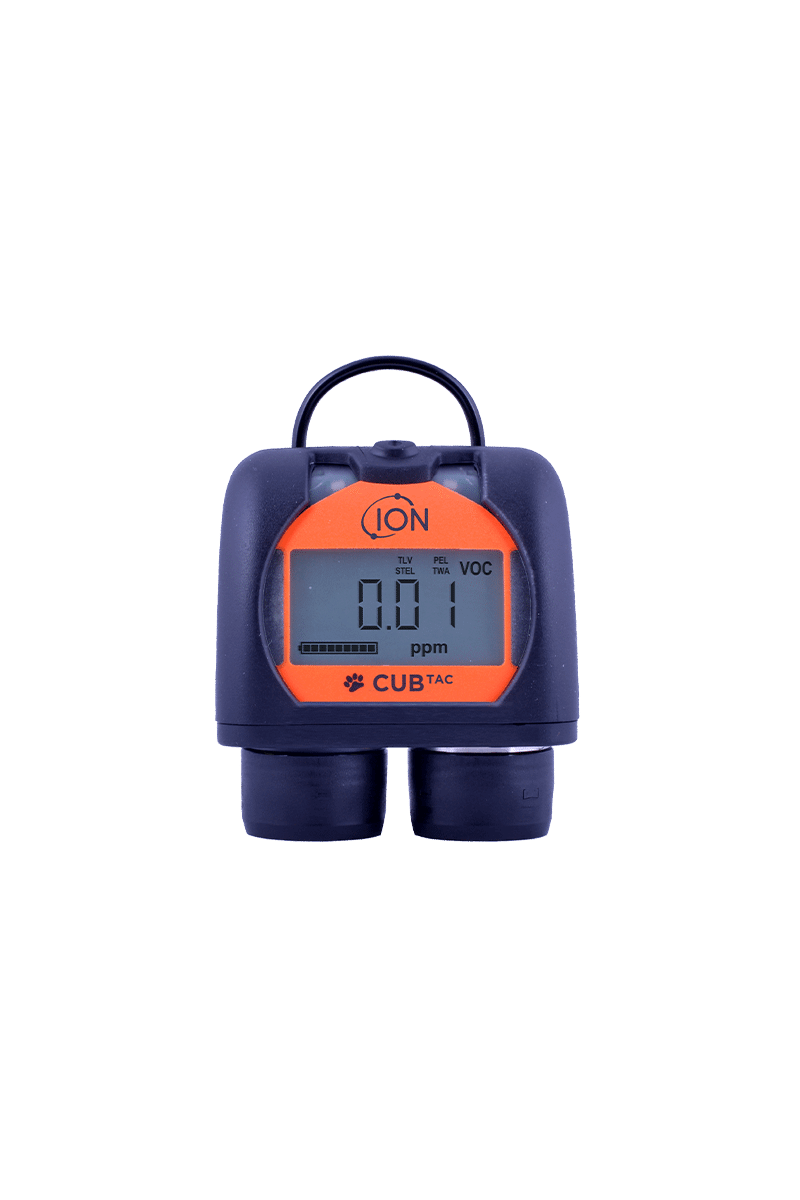

Cub TAC 10.0 eV
Personal Total Aromatic Compound Gas Monitor
Cub TAC 10.0 eV personal total aromatic compound gas monitor for fast, accurate detection of total aromatic compounds (TACs) keeping you safe within your working environment.
When worker exposure exceeds pre-set limits, this personal total aromatic compound gas monitor has audible, vibrating, and flashing LED alarms that alert you to the gases present. Readings are displayed on its bright, backlit LCD display with selectable data logging time.
The monitor uses ION Science patented PID sensor technology that has been independently verified as best performing for speed, accuracy, and humidity-resistant operation. Its unique Anti-contamination design and patented Fence Electrode Technology provide extended run time in the most challenging environments, giving you accurate results you can truly rely on.
Features
Cub TAC 10.0 eV personal total aromatic compound gas monitor has a dynamic detection range of 0 to 5000 parts per million (ppm), with its market-leading ppb sensitivity. This personal total aromatic compound gas monitor comes with all the benefits of the Cub 10.6 eV personal VOC detector but has a 10.0 eV lamp utilising a unique light filtering technology to give a reliable aromatic hydrocarbon concentration.
Also available from ION Science, the Cub 10.6 eV personal gas detector.
Ultimate Performance
- Unrivalled sensitivity detects total aromatic compounds including benzene down to ppb levels
- Widest range detects gases 0 – 5,000 ppm
- Anti-contamination design for extended field operation
- In-built humidity resistance with no need to compensate
Ultimate Safety
- Fastest (<13 seconds) response to hazardous gases & vapors
- Clear audio, visual and vibrating alarms
- Large LCD display for clear readings
- Battery life up to 12 hours
- Meets ATEX, IECEx Certification
Ultimate Flexibility
- Easy to service
- Smallest, lightest personal PID monitor available
Cub TAC 10.0 eV Personal Total Aromatic Compound Gas Monitor Technical Specification
Specification | Value |
|---|---|
| Sensitivity | 0.001 ppm (isobutylene equivalent)* 0.002 mg/m3 (isobutylene equivalent)* |
| Accuracy | ± 5% display reading ± one digit |
| Response | <13 seconds (T90) |
| Approvals | ll 1 G Ex ia llC T4 Ga (-4 °F ≤ Ta ≤ 131 °F) Baseefa11ATEX0027 IECEx BAS 11.0014 |
| Battery | Battery life up to 12 hours Battery charge time 4 hours |
| PID lamp options | 10.6 eV, 10.0 eV |
| Data Logging | 30,000 readings |
| Communication | USB 2.0 |
| Alarm | LEDs, audio and vibrate Sounder 95 dB @ 300 mm. Pre-programmed TWA & STEL Work exposure alarm levels on all models. |
| Temperature | Operating: – 4 to 140 °F Certified: -4 to 131 °F |
| Weight and Dimensions | 111 g (2.91 oz) 61 x 66 x 59 mm (2.4 x 2.6 x 2.3″) |
| Resolution | ppm 0.1 ppm ppb 0.001 ppm TAC 0.01 ppm |
| Range | 0 – 5000 ppm |
| Calibration | 2 point calibration via docking station |
| Upgradeable | Upgrade ppm to ppb |
| IP Rating | IP65** (heavy rain) |
| LCD Display | Backlit multicolor |
| Flow Rate | N/A (no pump) |
All specifications quoted are at the calibration point and under the same ambient conditions. Specifications are based on isobutylene calibration at 20 °C and 1000 mBar.
* Model dependant.
** IP65 with PTFE filter fitted, IP64 without PTFE filter fitted.
What Our Customers Say
View Case StudyView All Case StudiesView All Testimonials”“The Cub is easy to operate, reliable and robust which makes it ideal for use in the port environment, The training and service provided by ION Science’s distributor, Euro- Index, was also very good.”
A Spokesman for the Port of AntwerpPort of Antwerp equip employees with Cub monitors
What Our Customers Say
View Case StudyView All Case StudiesView All Testimonials”“We needed a secondary control to monitor the possibility of employee exposure to chemicals used in a fume containment cabinet. An online search showed the ION Science Cub personal PID monitors as being an ideal solution plus the UK distributor, Shawcity, was already set up as a supplier on our procurement system.”
Gregory Slavik, Microfabrication Engineer at NOCNational Oceanography Centre says goodbye to VOCs
Video Library
What does ppm look like?
The term Part Per Million is fairly self-explanatory, it’s simply the dilution of one matter into another but what does it actually look like?
Benzene related products from ION Science
With work exposure limits so low it has never been more important to have equipment that can detect benzene down to ppb levels.
Cub – Personal Gas Detector
The Cub personal gas detector is worn within the breathing zone to detect volatile organic compounds, keeping you safe within your working environment.
Downloads
For further supporting documentation for Cub TAC 10.0 eV personal total aromatic compound gas monitor, please see below.
Cub TAC 10.0 eV Personal Total Aromatic Compound Gas Monitor – Accessories and Replacement Parts
There are a number of accessories and replacement parts available for this gas monitor, which can be found below. Please contact us if you would like more information or to place an order.
