Fire Investigation Kit
Used for fire and arson investigations
The ION Science Fire Investigation Kit with Tiger XT or Tiger XTL photoionisation detector (PID) has been specifically designed to provide you with all the tools for a convenient, easy-to-use solution for the detection of volatile organic compounds (VOCs) within Fire and Arson Investigation applications.
In suspected arson cases, it is part of the fire investigation to prove that there is no other cause of the fire. The Fire Investigation Kit can be used to detect hydrocarbon compounds such as those found in petrol, alkanes, and cycloalkanes. Fire investigators including the police, consultants and private fire investigators acting on behalf of insurance companies, will search for every type of fire accelerant such as grill lighters, lighter fuel, liquid glue and cleaning agents.
- Improved robust design can withstand harsh environments
- IP65 ingress protection against a range of weather conditions
- <2 second response time, one of the fastest and most accurate on the market
- Instantaneous alarms, RED & AMBER with loud 95 dBA sounder
- Humidity resistant and anti-contamination design ensures optimal performance

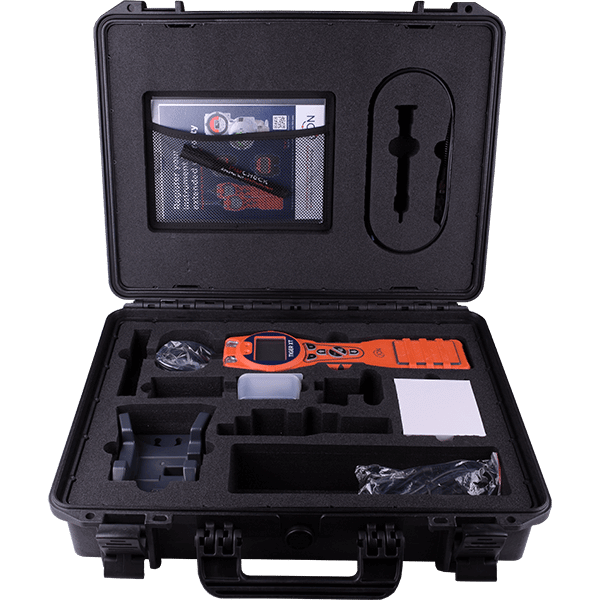

What’s in the case?
The ION Science Fire Investigation Kit with either a Tiger XT or XTL instrument has been specifically designed to provide you with all the tools for a convenient, easy-to-use solution for the detection of volatile organic compounds (VOCS) within fire and arson investigation applications.
Our Fire Investigation Kits contain the following:-
- Tiger XT/Tiger XTL
- Premium Carry Case
- Fire Investigation Accessory Kit (Exhaust Barb, PTFE Filters (Pack of 10), Bump Test Pen)
- 1m Flexi Probe
- USB Cable
- Mains Adaptor with Multiple Plug Adaptors
- Quick Start Guide
- Warranty Registration Card
- Calibration Certificate
- Safety Notice
|Minimum Resolution||10.6 eV: 1 ppb or 0.001 mg/m3*** |
11.7 eV: 0.6 ppm (600 ppb)***
|Detectable Range**|| |
10.6 eV: 1 ppb up to 20,000 ppm***
11.7eV: 9,000 ppm***#
|Response Time|| |
10.6 eV: T90 < 2 seconds
11.7eV: <6 seconds
10.6 eV: ± 5 % display reading ± 1 digit***
11.7 eV: ± 12 % display reading***
II 1G Ex ia IIC T4 Ga
Tamb = – 15 °C ≤Ta ≤ +45 °C (with lithium ion battery pack)
Tamb = – 15 °C ≤Ta ≤ +40 °C (with alkaline battery pack)
IECEx ITS 22.0025X ITS-I22ATEX35111X
3193491 conforms to UL Std. 913, 61010-1 & Certified to CAN/CSA Std. C22.2 No. 61010-1
Class 1 Division 1. Approval for Groups A, B, C & D, T4
|Battery Life|| Li-ion: life up to 24 hours, charge time 8 hours |
Alkaline: 3 x AA, typically 8.5 hours life
|Lamps||10.6 eV Krypton PID lamp (standard) |
10.0 eV and 11.7 eV available
|Data Logging*||120,000 points including date and stamp|
|Communication||Direct USB 1.1 communication|
|Calibration||2 point and 3 point calibration (via calibration kit accessory)|
|Alarm||Flashing LEDs Amber (low alarm) Red (high alarm) |
Sounder 95 dBA at 300 mm (12″)
Vibration on alarm
programmed TWA and STEL*
|Flow Rate||≥ 220 ml/min (with blocked flow alarm)|
10.6 eV: -20 to 60 °C, -4 to 140 °F (non Intrinsically Safe)
11.7 eV: 0 to 60 °C
10.6 eV: 15 to +45 °C / +5 to 113 °F (Intrinsically Safe environment)
11.7 eV: 15 to +45 °C / +5 to 113 °F (Intrinsically Safe environment)
-25 to 60 °C / -5 to 140 °F
Humidity: 0-99% RH (non condensing)
|Protection||Designed to IP65 |
EMC tested to EN61326-1:2013, EN50270:2016 & CFR 47:2008 Class A
|Weight & Dimensions||370 mm (H) x 91 mm (W) x 60 mm (D) |
* Depends on model and gas.
** Maximum reading is obtained with some analytes such as ethanol.
*** Specifications are based on calibration of isobutylene at 20 ° C and 1000 mBar. All specifications shown are at the calibration point and under the same environmental conditions.
**** Based on continuous operation.
# For indicative measurements only. Quoted accuracy achievable up to 2,000 ppm. For more accurate detection, calibration around the concentration of interest is recommended.
