Fire Investigation Kit

Used for fire and arson investigations

The ION Science Fire Investigation Kit with Tiger XT or Tiger XTL photoionisation detector (PID) has been specifically designed to provide you with all the tools for a convenient, easy-to-use solution for the detection of volatile organic compounds (VOCs) within Fire and Arson Investigation applications.

Enquire Now Download Brochure

Back to all Portable Gas Detectors

Product Overview

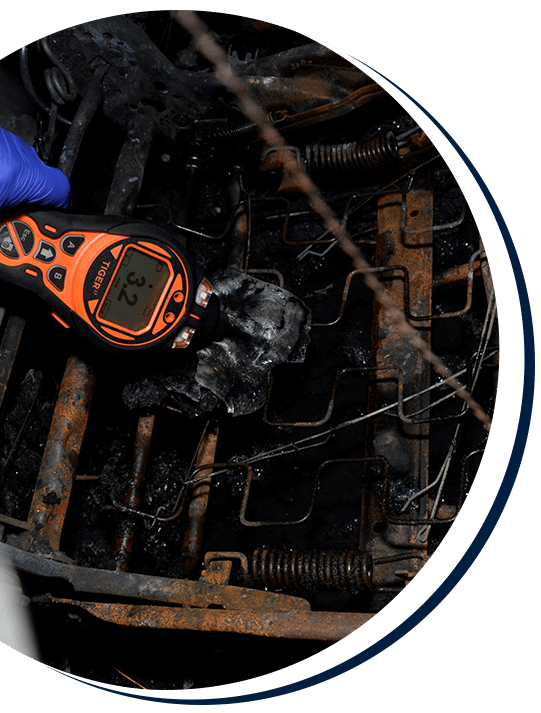

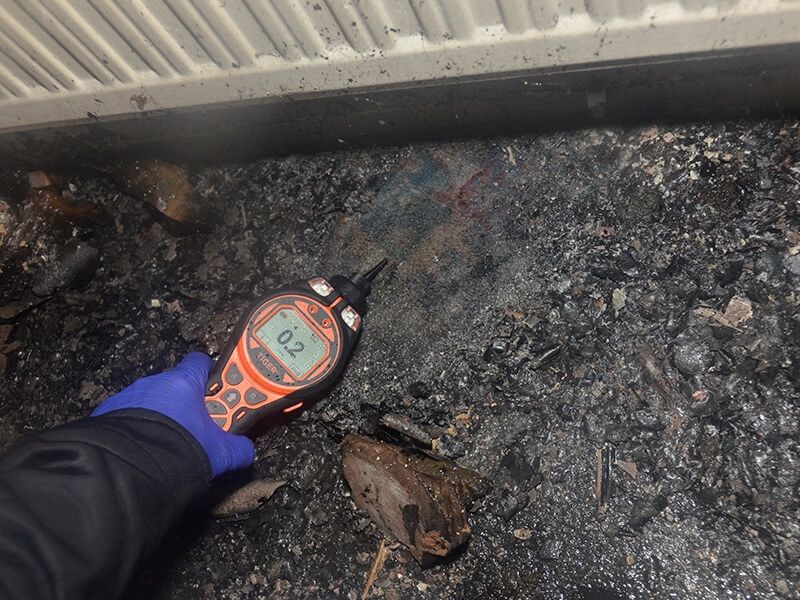

In suspected arson cases, it is part of the fire investigation to prove that there is no other cause of the fire. The Fire Investigation Kit can be used to detect hydrocarbon compounds such as those found in petrol, alkanes, and cycloalkanes. Fire investigators including the police, consultants and private fire investigators acting on behalf of insurance companies, will search for every type of fire accelerant such as grill lighters, lighter fuel, liquid glue and cleaning agents.

Key Features

Improved robust design can withstand harsh environments
IP65 ingress protection against a range of weather conditions
<2 second response time, one of the fastest and most accurate on the market
Instantaneous alarms, RED & AMBER with loud 95 dBA sounder
Humidity resistant and anti-contamination design ensures optimal performance

Up to 5 Years Extended Warranty

Step 1) Purchase an ION Science Fire Investigation Kit with either Tiger XT or Tiger XTL

Step 2) Register your instrument here within one month of purchase

Step 3) Receive up to 5 years extended warranty!

Extend Warranty

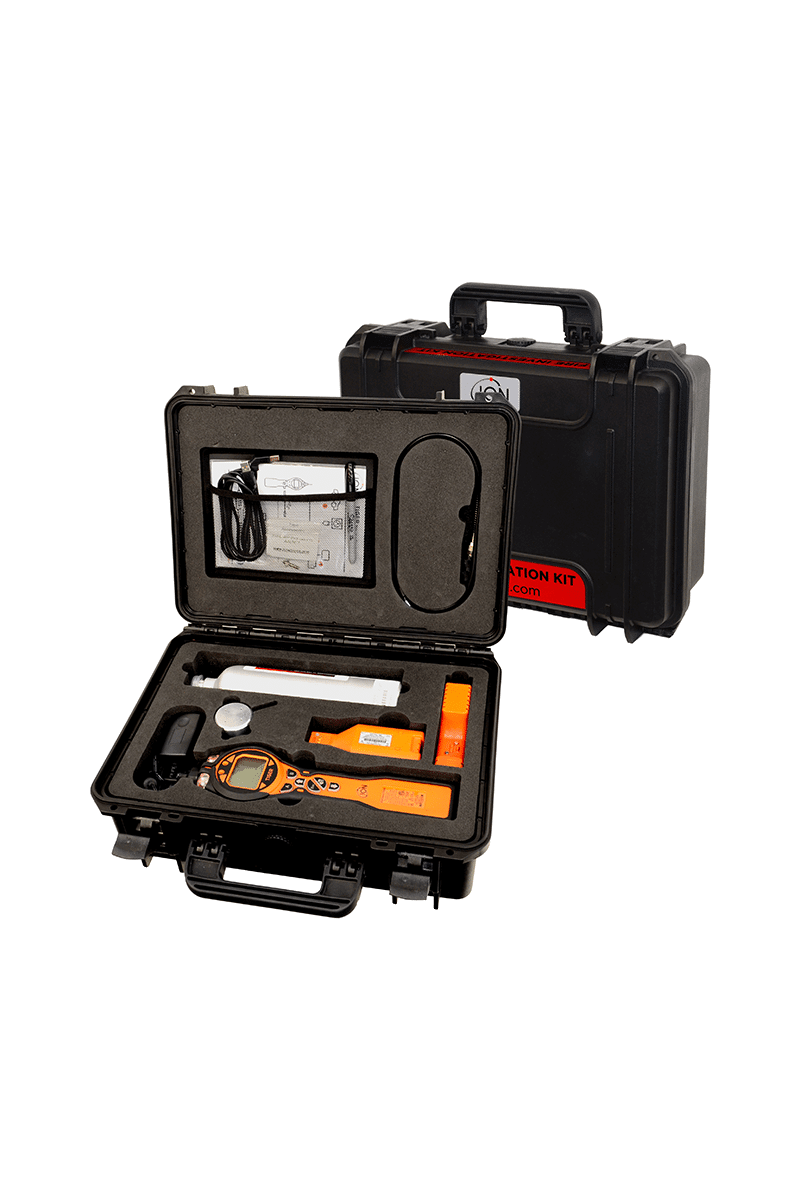

What’s in the case?

The ION Science Fire Investigation Kit with either a Tiger XT or XTL instrument has been specifically designed to provide you with all the tools for a convenient, easy-to-use solution for the detection of volatile organic compounds (VOCS) within fire and arson investigation applications.

Our Fire Investigation Kits contain the following:-

Tiger XT/Tiger XTL
Premium Carry Case
Fire Investigation Accessory Kit (Exhaust Barb, PTFE Filters (Pack of 10), Bump Test Pen)
1m Flexi Probe
USB Cable
Mains Adaptor with Multiple Plug Adaptors
Quick Start Guide
Warranty Registration Card
Calibration Certificate
Safety Notice

Technical Specification

Specification	Value
Minimum Resolution	10.6 eV: 1 ppb or 0.001 mg/m^3*11.7 eV: 0.6 ppm (600 ppb)*
Detectable Range**	10.6 eV: 1 ppb up to 20,000 ppm* 11.7eV: 9,000 ppm*#
Response Time	10.6 eV: T₉₀ < 2 seconds 11.7eV: <6 seconds
Accuracy***	10.6 eV: ± 5 % display reading or ± 1 digit* 11.7 eV: ± 12 % display reading*
Approvals	II 1G Ex ia IIC T4 Ga Tamb = -25 °C ≤Ta ≤ +45 °C (with lithium ion battery pack) Tamb = -25 °C ≤Ta ≤ +40 °C (with alkaline battery pack) IECEx ITS 22.0025X ITS-I22ATEX35111X ITS22UKEX0635X 3193491 conforms to UL Std. 913, 61010-1 & Certified to CAN/CSA Std. C22.2 No. 61010-1 Class 1 Division 1. Approval for Groups A, B, C & D, T4
Battery Life	Li-ion: life up to 24 hours, charge time 8 hours Alkaline: 3 x AA, typically 8.5 hours life
Lamps	10.6 eV Krypton PID lamp (standard) 10.0 eV and 11.7 eV available
Data Logging*	120,000 points including date and stamp
Communication	Direct USB 1.1 communication
Calibration	2 point and 3 point calibration (via calibration kit accessory)
Alarm	Flashing LEDs Amber (low alarm) Red (high alarm) Sounder 95 dBA at 300 mm (12″) Vibration on alarm programmed TWA and STEL*
Flow Rate	≥ 220 ml/min (with blocked flow alarm)
Humidity	0-99% RH (non condensing)
Protection	Designed to IP65 EMC tested to EN61326-1:2013, EN50270:2015 & CFR 47:2008 Class A
Weight & Dimensions	370 mm (H) x 91 mm (W) x 60 mm (D) 870g

* Depends on model and gas.
** Maximum reading is obtained with some analytes such as ethanol.
*** Specifications are based on calibration of isobutylene at 20 ° C and 1000 mBar. All specifications shown are at the calibration point and under the same environmental conditions.
**** Based on continuous operation.
# For indicative measurements only. Quoted accuracy achievable up to 2,000 ppm. For more accurate detection, calibration around the concentration of interest is recommended.

Download Brochure

Video Library

Downloads

For supporting resources for the Fire Investigation Kit, please see below.

Fire Investigation Kit Accessories and Replacement Parts

There are a number of accessories and replacement parts available for the Fire Investigation Kit, which can be found below. Please contact us if you would like more information or to place an order.

FAQs

If you have any questions related to the Fire Investigation Kit, please view our frequently asked questions.

Can I upgrade my instrument firmware?

How often should I replace filters on my Tiger instrument?

Enquire Now

Fire Investigation Enquiry Form

Please complete the form below and a member of our team will contact you shortly.

Global Distributors

All ION Science distributors are trained to the highest standards to provide you with access to our product portfolio locally, along with the best possible service and support. Find your local representative.

Where to buy

Hide
Comparative specifications
Sensor Variant	MiniPID 2 PPM WR VOC Sensor	MiniPID 2 PPM VOC Sensor	MiniPID 2 PPB WR VOC Sensor	MiniPID 2 PPB VOC Sensor	MiniPID 2 HS VOC Sensor	MiniPID 2 10.0 eV VOC Sensor	MiniPID 2 11.7 eV VOC Sensor	MiniPID 2 PPB XF Sensor
Electrode Stack Colour	Blue	Blue	White	White	Red	White + Gold Spot	White	White + Filter
Minimum Detection Limit	500 ppb	100 ppb	20 ppb	1 ppb	0.5 ppb	5 ppb	100 ppb	1 ppb
Range	0 to >10,000 ppm	0 to 4000 ppm	0 to >200 ppm	0 to >40 ppm	0 to >3 ppm	0 to >100 ppm	0 to >100 ppm	>40 ppm
Response Time T90 (s)	<3	<3	<8	<8	<12	<8	<8	<12s
Sensitivity	>0.4 mV/ppm @ 100ppm	>0.65 mV/ppm @ 100 ppm	>5 mV/ppm	>30 mV/ppm	>600 mV/ppm	>15 mV/ppm	>1 mV/ppm	>30 mV/ppm
Lamp Energy	10.6 eV	10.6 eV	10.6 eV	10.6 eV	10.6 eV	10.0 eV	11.7 eV	10.6eV
